Wolf Safety M-20 ATEX Xenon Pen Torch Yellow 15 lm, 145 mm, Фонарь

Mini & Micro compact ATEX Torches

The Wolf Safety range of Micro and Mini torches are rugged, compact, pocket torches designed to offer performance and reliability in tough environments. These torches come with a hole to attach a lanyard for hands-free carrying (M-10 comes with a lanyard). There is also a clip on the side of the torch to attach to your pocket and to prevent rolling on surfaces.

Wolf Safety Micro and Mini are operated using a single button at the top, so it can be single hand operated. These torches are lightweight and compact, perfect for carrying in your pocket.

ATEX Approved
The Micro and Mini torches are ATEX and IECEx certified and therefore suitable for use in potentially explosive gas, vapour, mist or dusty atmospheres, where a T4 or T5 temperature class permits. These torches are also approved to Group I for mining use. Note: M-20 is not dust approved.

What is it made from?
The Micro and Mini torches are made using a thermoplastic resin which is rugged and great for chemical resistance. The torch lens is made from polycarbonate and it is set back within the torch, to prevent damage.

Is it waterproof?
This torch is rated to IP67 and therefore water and dust tight.

Versions Available:
(625-9494) M-10 Micro Torch
(625-9517) M-20 Mini Torch
(625-9523) M-60 Mini Torch
(625-9501) M-201 Replacement Bulb for M-20

Note

To comply with the torch approvals, only primary cells to IEC60086 must be used.

Group and Category

II 1//2 G Ex ia/b IIC T4/5 (Ta=50°C) IP67

Certificate No.

Baseefa06ATEX0084 IECEx Bas 06.0023

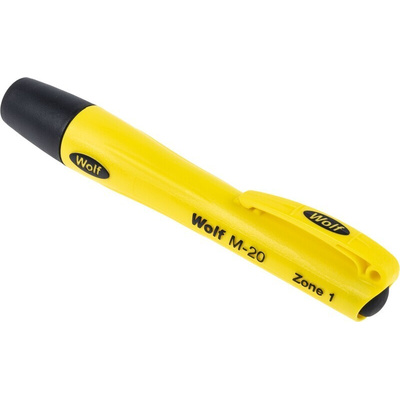

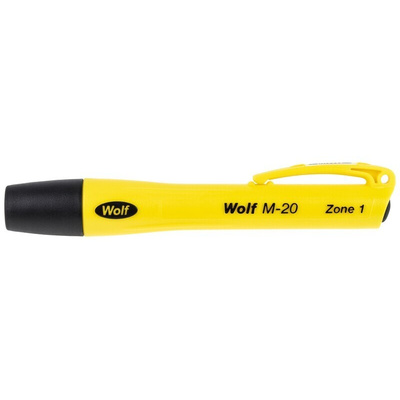

Wolf M20 Xenon Safety Torch

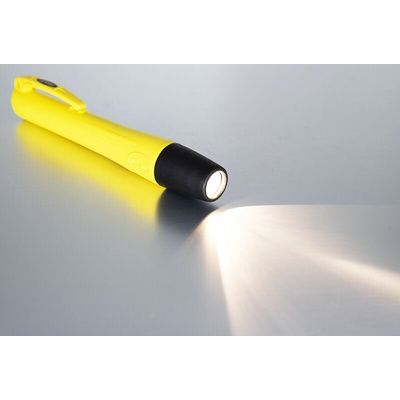

The Wolf Safety M-20 is Mini torch with a narrow spot beam of light (approx. 6°) for up to 2.5m. It features a Xenon bulb which is powered by 2 x AAA (LR03) batteries. It offers up to 15lm light output and ideal as a smaller, precise work light.
This compact safety torch is ideal for use in potentially hazardous areas and approved as category 2 equipment in zones 1 and 2.

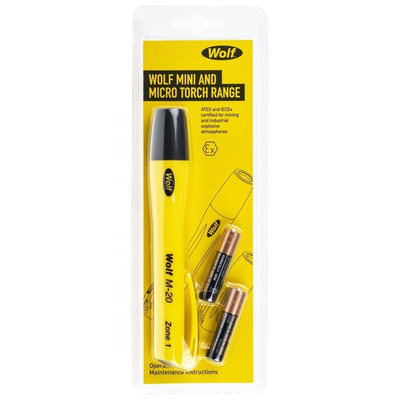

Supplied with
type":"Supplied with",

Cells

Hazardous Area

Wolf Mini and Micro Torch Range Technical Specification

Wolf Mini and Micro Torch Range Operation and Maintenance Instructions

Wolf Safety Portable ATEX Lighting
