3046032, Phoenix Contact UT 4-HESI (5X20) Series Black Fused DIN Rail Terminal, 4mm², Single-Level, Screw Termination, Fused

Phoenix Contact Fused DIN Rail Terminal, 6.2mm Pitch, G / 5 x 20 Fuse Type - UT 4-HESI (5X20) - 3046032

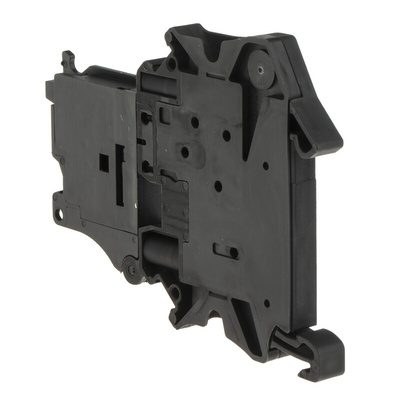

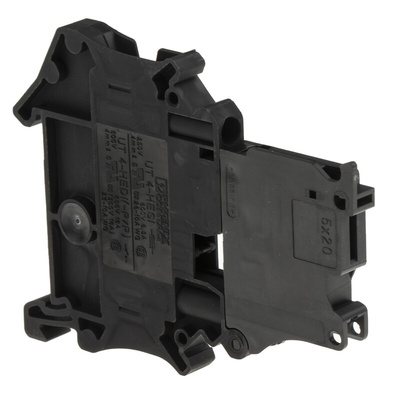

Take your equipment protection up a notch with this fused DIN rail terminal block from Phoenix Contact. It has screw terminals and polyamide housing for insulation, enabling the safe and reliable connection of wires. A width of just 6.2mm means you'll have no trouble squeezing the block onto a crowded DIN rail.

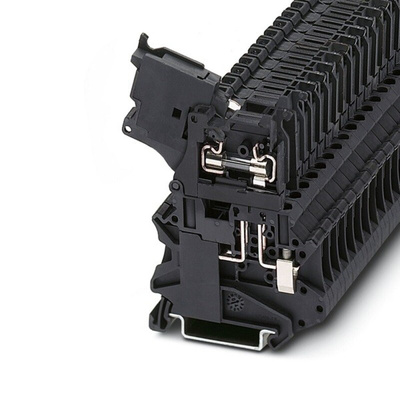

At the front, you'll find a holder for the fuse, which guards against over-currents. For convenience, the unit accepts standard 5 x 20 glass and ceramic cartridge fuses. Designed for class G fuses and rated for 500V, this block is well-suited to industrial applications such as machine building and plant engineering. It's tested to ensure it meets hazard levels one to three of DIN EN 45545-2 fire safety standards for rail vehicles, so it's also suitable for rolling stock manufacturing and repair.

Features & Benefits

• Modular design is compatible with the CLIPLINE range, enabling custom control panel building
• Test connections located on either side of lever for easy circuit checks
• UL 94-V0 flammability rating ensures burning stops within ten seconds to boost fire safety
• Works with wire sizes between 26 and 10AWG for wide compatibility
