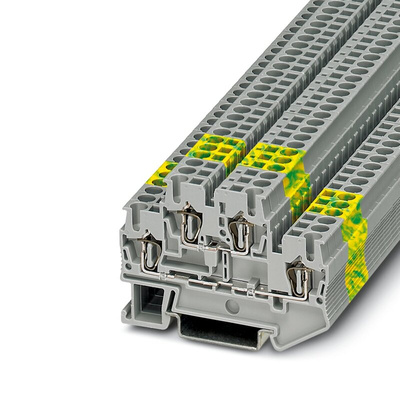

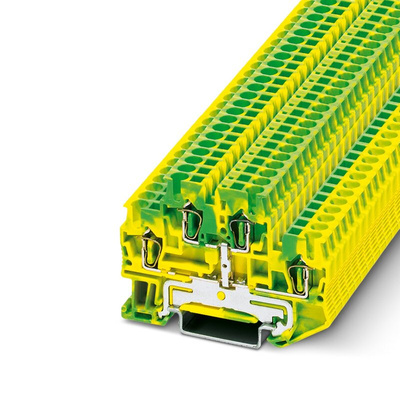

3036026, Phoenix Contact STTB 2.5-PE Series Green/Yellow Double Level Terminal Block, 0.08 → 4mm², Double-Level, Spring

Phoenix Contact Double-Level Terminal Block, PA Insulation, 67.5mm Length - STTB 2.5-PE - 3036026

Safeguard your applications from fault currents and electrical hazards with this double-level terminal block from Phoenix Contact. It has four contact points, meaning it can control multiple circuits simultaneously. Dual-row construction and compact dimensions of 67.5 (H) x 5.2 (W) x 47.5 mm (D) ensure it takes up minimal space on your NS 35/7.5 DIN rail, so it's the right fit for tight setups. An open side panel makes it easy to link it to other terminal blocks for flexibility.
The unit is protected by polyamide housing that shrugs off mechanical impact and resists corrosion, so you're assured of its long-term performance. This material also doubles as an insulator, keeping you safe from electric shocks. Blocks like this are a regular fixture in the railway industry and marine equipment.

Features & Benefits

• Green/yellow colouring stands out for easy identification as a ground terminal block in your system
• Conforms to VDE specifications for harmonised European safety, quality and EMC standards
• Spring cage termination for quick, tool-free installation and reliably sturdy connections
• Stops burning in 10 seconds or less during a fire, so it's a safe choice to install in volatile areas

Multiple position ground terminal blocks with spring-cage connection, cross section: 0.08 - 2.5 mm Square , width: 5.2 mm, color: green-yellow

Instruction Sheet - 3036026
