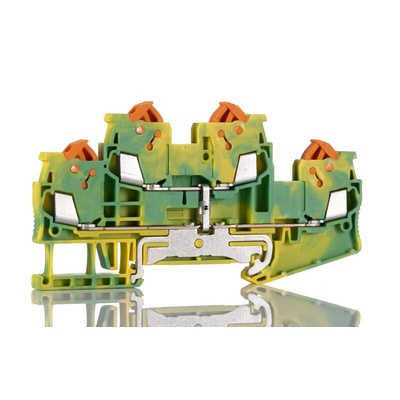

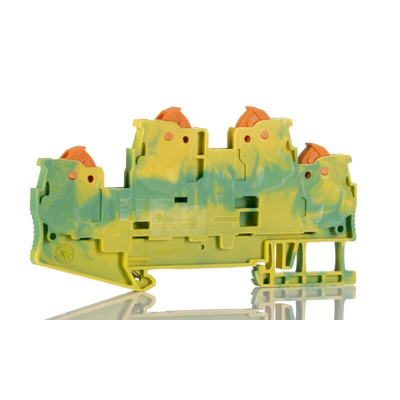

3205132, Phoenix Contact QTTCB 1.5-PE Series Green/Yellow Double Level Terminal Block, 0.25 → 1.5mm², Double-Level, Quick

Phoenix Contact Double-Level Terminal Block, 4 Connections, 24 to 16AWG - QTTCB 1,5-PE - 3205132

Put a stop to electrical hazards in your system using this double-level terminal block from Phoenix Contact. It has four connections arranged in two rows, helping to keep your wiring neat and clearly organised. For enhanced electrical safety, a grounding foot means it's a walk in the park to establish an earth connection. As the unit has quick-connect terminals, you can insert your wires in a snap without reaching for specialist tools.
Thanks to its rated surge voltage of 6kV, you can rest assured this block stands up to powerful spikes in voltage and minimises the risk of damage to downstream equipment. Its PA housing provides effective insulation to protect your system from short circuits and current overload. As it accepts wires ranging in size from 24 to 16AWG, it's a versatile piece of kit.

• Maximum power dissipation of 0.56W for energy-efficient operation
• Wide operating temperature range between -60°C and +105°C for use in demanding environments
• UL 94-V0 flammability rating means burning stops in 10 seconds or less in the event of a fire
