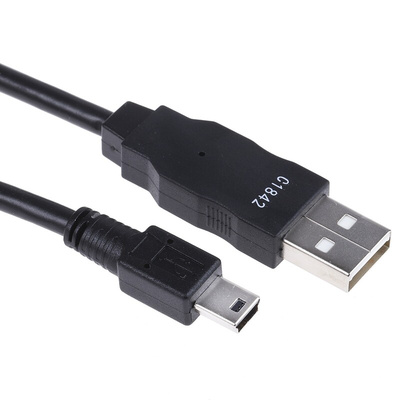

88732-8602, Molex USB 2.0 Cable, Male USB A to Male Mini USB B Cable, 1m

Molex Male USB A to Male Mini USB B USB Cables

Molex male USB A to male mini USB B USB cables is the ideal low-cost cable connector for industrial and commercial applications. These USB cables offer high-speed performance when you need to connect portable or mobile equipment. Molex male USB A is a standard USB interface coupled with a male mini USB B, perfect for connecting compact portable electronic devices such as cameras and phones to a computer or charger.

Features and Benefits

• Dual Ended Connectors
• USB Type A-to-Mini-B (male to male)
• Excellent RFI/EMI performance
• Lengths: 1 to 2m
• 480 Mbps
• Black or white

On the go (OTG)

On the go feature allows your device to connect to another peripheral device to share information without the aid of a computer.

Male USB A to Male Mini USB B USB Cable Options

Length: 1 m = RS stock no: 627-2908
Length: 1 m = RS stock no: 656-3939
Length: 1.5 m = RS stock no: 822-3226
Length: 2 m = RS stock no: 800-6946

Typical Applications

Typical Applications:

USB cables are typical components used to provide a connection from computers to peripherals such as keyboards, printers, portable media players, network adapters and pointing devices. They are also used to provide electrical power to portable devices via a wall adapter or computer. There are several types of USB connectors such as:
• USB A
• USB B
• USB C
• Mini USB (A,B,C)
• Micro USB (A,B,C)

FAQ:

What does IP rating mean for USB cables?

IP (Ingress Protection) is the protection level against the intrusion of water or dust for USB cables. The IP rating is described by two numbers: e.g. IP65 where the first digit stands for SOLIDS and second for LIQUIDS materials. The higher number is the higher level of protection.

What USB cable type describes?

USB cable types can be classified into several transfer speed groups:
USB 3.1 – the most recent and the fastest available standard of USB cables. It is capable to transfer up to 10Gbps. Please, bear in mind that USB 3.1 types are not compatible with USB 2.0 or older ports.
USB 3.0 – these cables are able to work up to 5Gbps and are used in many modern devices that require multiple streams of data. USB 3.0 ports are fully backwards compatible which means USB 2.0 cables will be working with them. However, data transfer speed will be limited up to 2.0 standard.
USB 2.0 – one of the most popular USB Cable standards that allows for a transfer speed of 480 Mbps. Most of the devices on the market are compatible with this standard.

Molex Dual-Ended A to Mini B USB Cable, 1m - 88740 Series - 88732-8602

Make use of this powerful Molex male-to-male USB (universal serial bus) 2.0 connector as a portable connectivity system to transfer data and files between devices. You can quickly move your files by connecting one end to an input device and the other end to an output device. The connector's innovative OTG (on the go) feature lets you share information between secondary devices without a computer, for use in emergencies. This USB cable will come in handy as a connection mechanism for common electronic devices in both domestic and commercial situations.

• Gold plating protects against EMI (electromagnetic interference), which causes signal loss
• Flexible material, for easy transfer and storage
• Durable polyester resin has water-resistant properties for use in humid environments
• Locking system for a secure fit and steady data transfer

Applications

• Computer systems
• Charging devices
• Adapters
• Display systems
• Camera equipment

How fast is the transfer of files to another device with this Molex USB cable?

This cable allows for high-speed data transfer up to 480 megabytes per second. This ensures the quick transfer of various forms of electronic signals, including visual and audio.

Molex USB Connectors

Datasheet

Drawing - 88732-8602
