3022276, Phoenix Contact CLIPFIX Series End Stop for Use with DIN Rail Terminal Blocks, ATEX

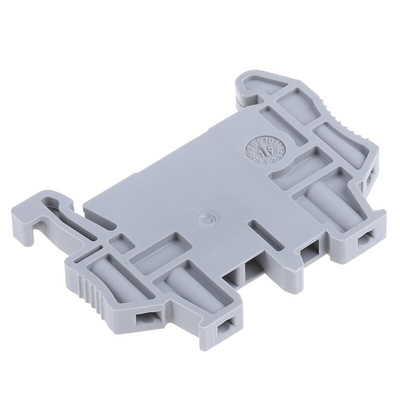

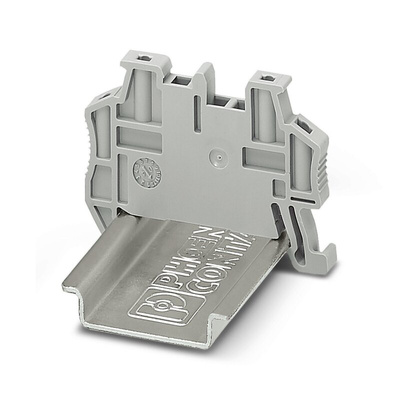

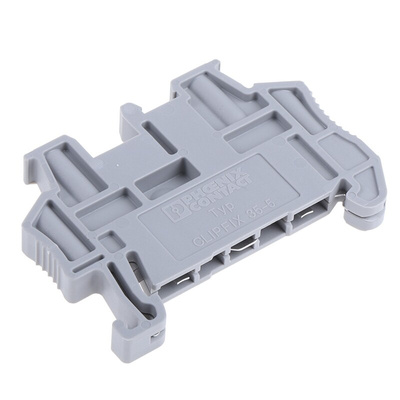

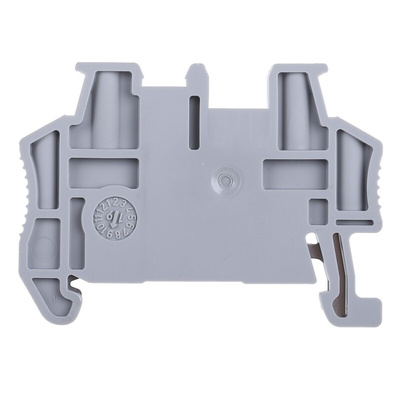

Phoenix Contact End Clamp, Quick Mounting, 5.2mm Width - CLIPFIX 35-5 - 3022276

Keep your DIN rail components safe and sound with this Phoenix Contact end clamp. The handy component is just what you need to stop terminal blocks from sliding around in vibrating conditions, which helps to prevent your devices from getting damaged.
For quick and easy mounting, the unit simply clips onto a standard rail. It's also easy to remove without reaching into your toolbox. A durable PA construction resists corrosion and wear, so you can rely on the clamp's longevity in harsh operating conditions. As this material is also non-conductive, there's no chance of it shocking you.
This tough-as-nails DIN rail accessory is ideal for use with moving machinery such as industrial robots or rail vehicles. Its light weight of 4.65g means it puts minimal strain on your setup.

Features & Benefits

• UL 94-V0 flammability rating meaning it won't catch alight in the event of a fire
• Compact dimensions of 48.6 (L) x 5.15 (W) x 35.3mm (H) help to maximise rail packing efficiency
• Large labelling surface for convenient identification of components
• Stands up to demanding operating temperatures between -60°C and +65°C

CLIPFIX

Datasheet 3022276
