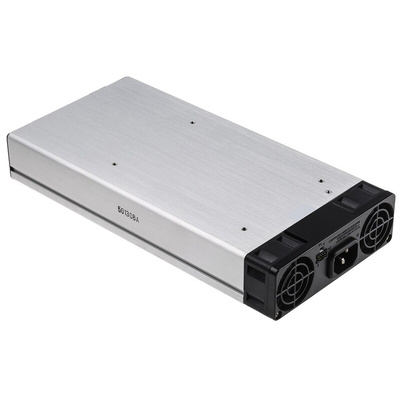

XCD, Excelsys, 1.2kW Embedded Switch Mode Power Supply SMPS, Enclosed, Источник питания

Excelsys Switch Mode Power Supply

The Excelsys 1200W 6 enclosed outputs AC to DC switch mode power supply has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 380VDC. The output modules must be inserted into the chassis for the required output voltages up to the total power rating of the selected chassis. The power supply allowing system designers to rapidly integrate into a system. Boasting 90% efficiency in a 1U high package.
Note:
Each modular PSU chassis is supplied with blanking plates.

Features and Benefits

Plug and play power
User configurable
Efficiency Up to 90%
No minimum load
Voltage adjustment on all outputs
Thermal protection
Over voltage and over current protection
Logic inhibit/enable
Power fail signals
Operating temperature ranges between -20°C and 70°C (derating above 50°C is 2.5% per °C)
Series/ parallel of multiple outputs
Visual LED indicators

Applications

Industrial machines
Test and measurement
Automation equipment
Telecommunications
Medical equipment
Laboratory and diagnostic equipment
Audio and broadcast
Linear and rotary motion

Certifications

EN 60950
UL 60950
UL approved
CSA approved
EN61000-3-2 (power factor corrected)
EN55022-B (EMC)
