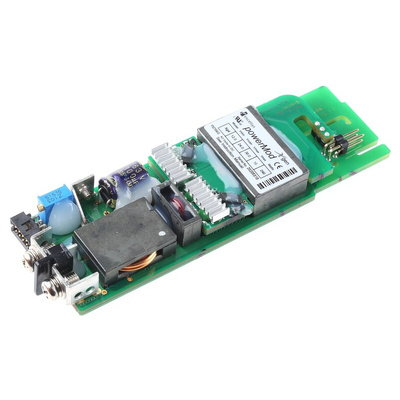

Excelsys Switching Power Supply, XG7, 28V dc, 5A, 120W, 1 Output, 120 → 380 V dc, 85 → 264 V ac Input, Источник питания

400W to 1200W, Universal Input

The first user configurable power supply allowing system designers to rapidly integrate into a system. Boasting 90% efficiency in a 1U high package. The output modules must be inserted into the chassis for the required output voltages upto the total power rating of the selected chassis.

Plug and play power - user configurable
Up to 90% efficiency
No minimum load
Voltage adjustment on all outputs
Power Factor Corrected to EN61000-3-2
EMC meets EN55022-B
Thermal protection
Over voltage and over current protection
Logic inhibit/enable
Power fail signals
Operating temperature -20 to +70°C (derating above 50°C is 2.5% per °C)

Note

Each modular PSU chassis is supplied with blanking plates.

Standards

EN 60950, UL 60950

Approvals

UL recognised, CSA

Xgen series power supplies Data Sheet

Excelsys Xgen Series Power Supplies Instructions

Video demo - Excelsys Xgen series Power supplies

Designers Manual
