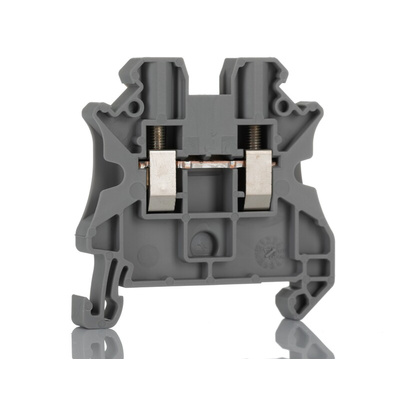

3044102, Phoenix Contact UT 4 Series Grey Feed Through Terminal Block, 0.14 → 4mm², Single-Level, Screw Termination, ATEX

Phoenix Contact Feed-Through Terminal Block, Shock-Resistant, 1.02W Maximum Power Dissipation - UT 4 - 3044102

Want to quickly link wires in your electrical panel? Speed through the task with this feed-through terminal block from Phoenix Contact. It's compatible with wires that range in size from 26 to 12AWG, so it's a good allrounder. With a nominal current of 32A, the unit's up to the challenge of working with your high-power systems.
An open panel at the side lets you swiftly reach your terminals for maintenance or inspection, without going through the hassle of removing it from the rail. The housing is made of tough PA, so it handles impact and insulates to prevent electric shocks. A broad operating temperature range between -50°C and +110°C means it shrugs off the challenges of industrial workplaces. The block fits into many sizes of enclosure, thanks to its compact dimensions of just 6.2 (W) x 47.7 (L) x 46.9mm (H).

Features & Benefits

• ATEX certified to withstand hazardous environments
• Screw connections resist vibration and impact, ensuring reliable performance
• UL 94-V0 flammability rating indicates increased fire safety, stopping burning in 10 seconds
• Maximum power dissipation of 1.02W for energy-efficiency

Phoenix Contact CLIPLINE UT Range

Datasheet 3044102

Application Note - Terminal Blocks

Installation Sheet - 3044102
