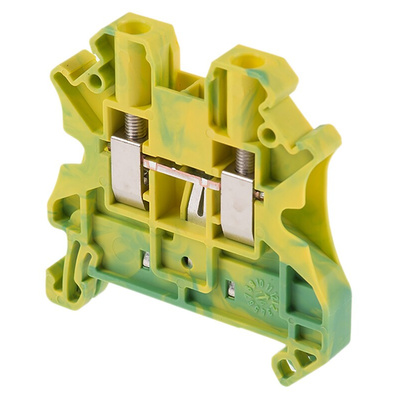

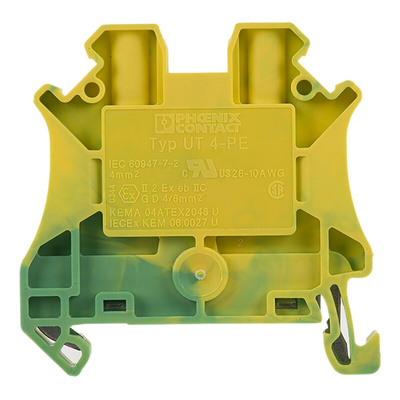

3044128, Phoenix Contact UT 4-PE Series Green/Yellow Earth Terminal Block, 0.14 → 6mm², Single-Level, Screw Termination,

Phoenix Contact Earth Terminal Block, 0.6 to 0.8Nm Tightening Torque, 1.02W Maximum Power Dissipation - UT4-PE - 3044128

Looking for a trusty sidekick to protect your DIN-rail-linked components from excess current feedback? Go for this earth terminal block from Phoenix Contact. Its clamping foot transforms your rail into a busbar, carrying any rogue charges away from your equipment and safely into the ground. This improves safety by reducing the risk of electric shocks and fire outbreaks. A two-way design makes this a suitable option for multi-circuit control as you can link more than one wire to the unit.
This device's PA housing shrugs off impacts and heat, ensuring it handles the rigours of harsh environments without breaking a sweat. It comes in characteristic green and yellow colours that make it stand out on your setup as a safety device. The unit accommodates wire sizes ranging between 26 and 10AWG, so it's your versatile work partner for different circuit types. It's commonly found in machine-building applications.

Features & Benefits

• Rated surge voltage of 8kV to handle sudden power spikes without being damaged
• ATEX certified for use in potentially explosive settings
• Loses just 1.02W of power to heat for energy efficiency

Phoenix Contact CLIPLINE UT Range

Datasheet 3044128

Instruction Sheet - 3044128

Line Drawing - 3044128
