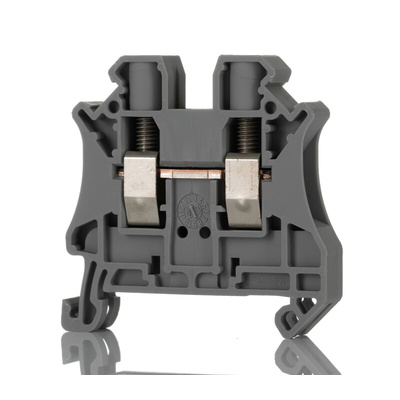

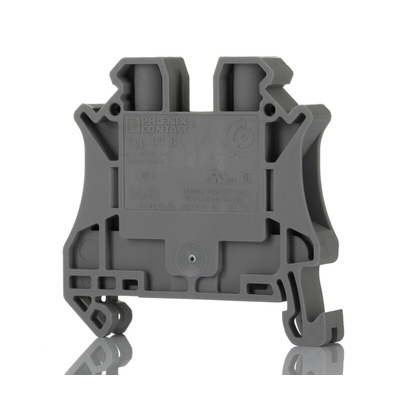

3044131, Phoenix Contact UT 6 Series Grey Feed Through Terminal Block, 0.2 → 10mm², Single-Level, Screw Termination, ATEX

Phoenix Contact Feed-Through Terminal Block, 1,000V Voltage Rating, 41A Current Rating - UT 6 - 3044131

Need to contain your live wires? Get them organised with this feed-through terminal block from Phoenix Contact. It's a versatile choice that accommodates 24 to 8AWG conductors, so it's widely compatible. High 1kV voltage and 41A current ratings make it a reliable option for your heavy-duty circuits.
The unit's rugged PA housing doesn't buckle under impacts so it's made to last for the long run. Screw terminals firmly hold conductors in place to limit nuisance disconnections and service disruptions. Thanks to the maintenance-free design, that incorporates the Reakdyn principle, there's no need to retighten the screws. A handy shaft guides your screwdriver so you can get the job done in a jiffy.
This block performs without a hitch in temperatures between -50°C and +110°C, so it's suitable for use in demanding environments. Simply clip it onto a DIN rail for electrical protection in medical systems, industrial installations and railway applications.

Features & Benefits

• UL 94-V0 approval indicates the unit's passed quality tests for fire safety
• 47.7mm length takes up little space on a DIN rail
• IECEx certification assures you the product is suitable for use in hazardous environments

Phoenix Contact CLIPLINE UT Range

Datasheet 3044131

Instruction Sheet - 3044131

Line Drawing - 3044131
