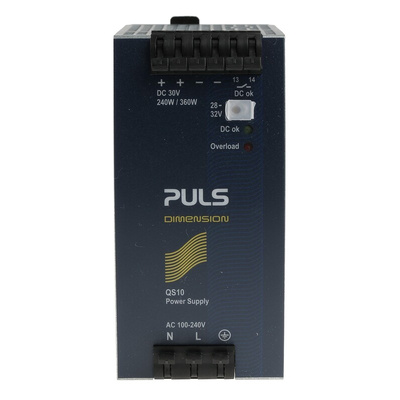

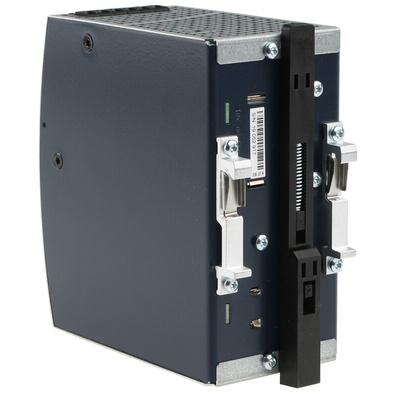

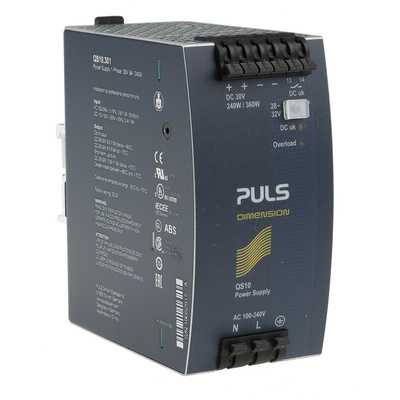

QS10.301, PULS DIMENSION Q Switch Mode DIN Rail Power Supply, 100 → 240V ac ac, dc Input, 30V dc dc Output, 8A Output, 240W, Блок питания

PULS DIN Rail Power Supply

The PULS DIMENSION Q series single-phase DIN-rail switch-mode power supply has an output voltage of 30VDC at 8A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. This unit is equipped with an input voltage ranging between 100VAC and 240VAC. This power supplies diagnostic is easy due to the dry DC-ok contact, a green DC-ok LED and red overload LED.

Features and Benefits

Light and compact
Quick-connect spring-clamp terminals
Efficiency is up to 93.5%
Power rating is 240W
Ripple factor and noise is 50mVpp
Active power factor correction (PFC)
Negligible low inrush current surge
DC-OK signal with relay
50% Power reserves available up to 4s
Operation temperature ranges between -25°C and 70°C

Applications

Industrial control
Automation
Communication and instrumentation equipment

Certifications

IEC
UL approved
EN
SELV
