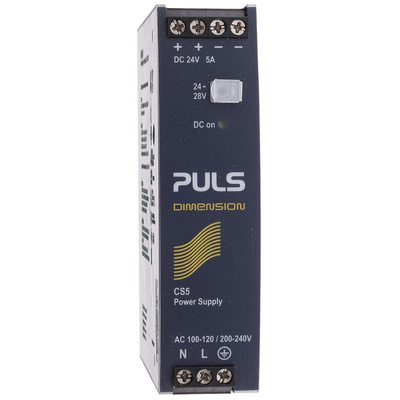

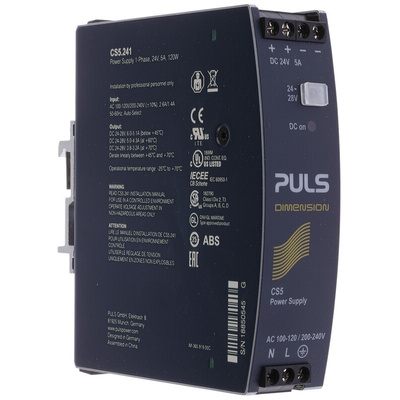

PULS DIN Rail Power Supply
The PULS DIMENSION C-Line series single-phase DIN-rail switch-mode power supply has an output voltage of 24VDC at 5A current. This cost-optimised power supply is specifically designed with uncompromised quality and reliability for high-performance. The auto-select input voltage rating ranging between 100VAC and 120VAC/200VAC and 240VAC. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission
Note:
Power de-rating between 60°C and 70°C
Features and Benefits
Slim design
20% output power reserves up to 45°C is continuously allowed
Wide range auto select input
High efficiency is up to 90.2%
Power rating is 120W
Ripple factor and noise is 50mVpp
Excellent partial load efficiency
Minimal inrush current surge
Easy fuse breaking due to high overload peak current
Operation temperature ranges between -25°C and 60°C
Applications
Industrial control
Automation
Communication and instrumentation equipment
Certifications
IEC
UL approved
EN
SELV
EAC
GL
CE certified
