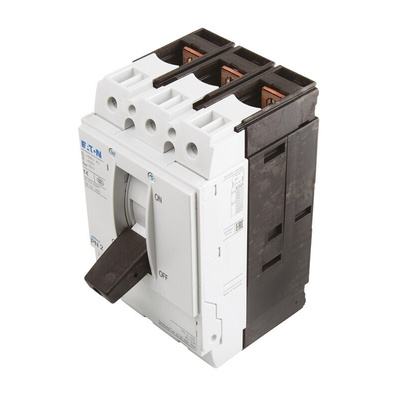

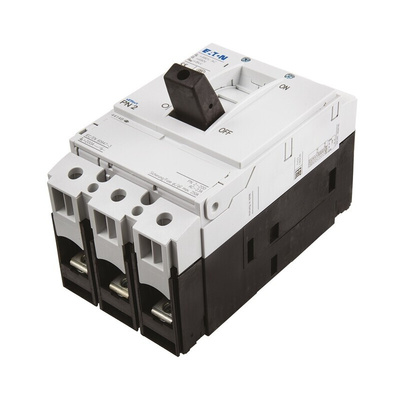

266006 PN2-200, Eaton Switch Disconnector, 3 Pole, 200A Max Current, 250A Fuse Current

Eaton Switch Disconnector, Surface Mounted, Screw Terminals - 266006 PN2-200

When you need to access machinery for essential repairs, reach for this switch disconnector from Eaton. It's used to disconnect equipment from the power supply so that maintenance work can take place safely. The unit has three poles, meaning you can connect it to three different circuits, so it's suitable for use with complex equipment. As it mounts onto a flat surface in any position, installation is straightforward. A 200A maximum current rating means you can rely on this device to turn the power on and off in heavy-duty applications. You'll find it used in settings from agriculture to manufacturing and construction.

Features & Benefits

• Enclosed design for enhanced safety
• Screw terminals ensure a vibration-proof hold on wiring
• IP20 rating indicates protection against accidental touch and objects larger than 12mm, such as wires and fixings

Can I use this switch disconnector in freezing conditions?

Yes, it has an operating temperature range between -25°C and +70°C, so you can use it in frozen and chilled environments.

How big is this switch disconnector?

It has compact dimensions of 206 (H) x 103 (D) x 105mm (W), so it takes up minimal surface space in your system.

Note

Eaton formerly known as Moeller

Datasheet - Eaton PN2-200

Installation Sheet - 266006 PN2-200

Catalogue - Compact Circuit Breakers, Switch Disconnectors
