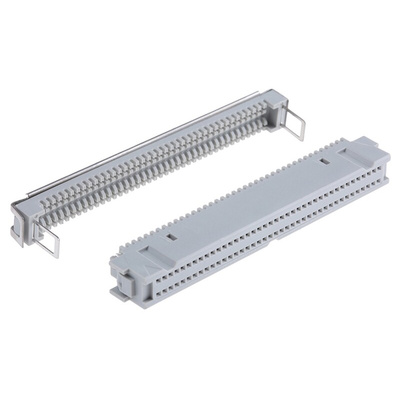

82080-6006RB, 3M 80-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

Cable Mounted Mini Socket

Mates with 1.27mm board mounted headers
For tooling see stock no.120-6962

3M IDC Connector, 2 Rows, 500V AC Voltage Rating - 820 Series - 82080-6006RB

Need to create a glitch-free cable assembly? Start your setup with this IDC connector from 3M. It has 80 contacts over two rows, so you can connect multiple devices to one unit and streamline your setup. To ensure strong and reliable signal transfer, the contacts are made from highly conductive beryllium copper. Thanks to its durable PBT housing, the unit's resistant to the chemicals and abrasion it's likely to encounter in demanding industrial settings.

• Cable mounted for a secure connection
• Current rating of 500mA means it's suitable for high-powered applications
• IDC termination method speeds up installation as there's no need to strip wires

Applications

• Consumer electronics
• Medical devices
• Telecommunications systems
• Industrial automation

Can I use this IDC connector in harsh conditions?

Yes – it has a broad operating temperature range between -55°C and +105°C, so it's safe to use in extreme conditions.

Line Drawing - 82080-6006RB
