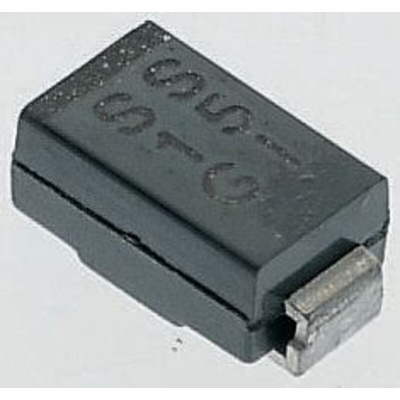

Vishay 200V 1A, Ultrafast Rectifiers Diode, 2-Pin DO-214AC ES1D-E3/61T, Диод

Vishay Silicon Junction Diode, ES1A, ES1B, ES1C, ES1D

FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Ultrafast recovery times for high efficiency
• Low forward voltage, low power losses
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak
of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: P/NHE3 or P/NHM3

TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.

MECHANICAL DATA
Case: SMA (DO-214AC)
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Base P/N-M3 - halogen-free, RoHS-compliant, commercial
grade
Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified
Base P/NHM3_X - halogen-free, RoHS-compliant, and
AEC-Q101 qualified
(“_X” denotes revision code e.g. A, B, .....)
Terminals: matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3, M3, HE3, and HM3 suffix meets JESD 201 class 2
whisker test
Polarity: color band denotes cathode end

Diodes and Rectifiers, Vishay Semiconductor

Datasheet

ESD Control Selection Guide V1

Application Note- Fundamentals for Power Correction

Application Note- Fundamentals of Rectifiers

Application Note- High Speed Data Line Protection

Application Note- Pad Layouts Soldering Process

Application Note- Physical Explanation

Application Note- Power Factor Correction with Ultrafast Diodes

Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Components
