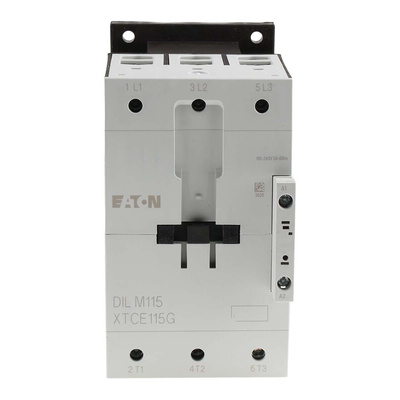

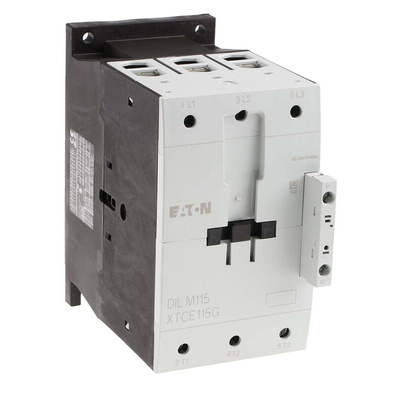

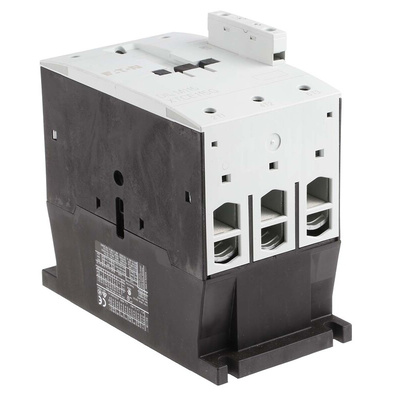

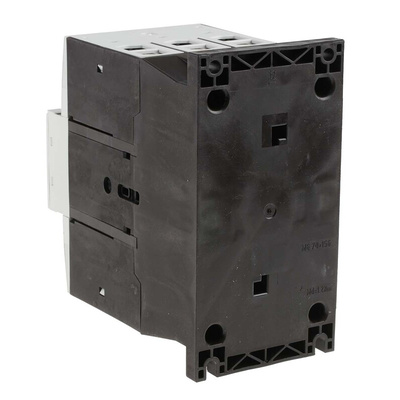

239548 DILM115(RAC240), Eaton Contactor, 190 → 240 V ac Coil, 3-Pole, 115 A, 55 kW, 3NO, 690 V ac, Контактор

Eaton Contactor, 3 Poles, AC Operation - DILM Series - 239548 DILM115(RAC240)

Control electrical flow in your industrial motor with ease using this contactor from Eaton. It seamlessly switches power at currents up to 115A, so you can count on it in high-load applications. For safety, the terminals are located where your fingers can't reach them, keeping you protected from live parts. Thanks to a rated surge voltage of 8kV AC, you can rest assured that rogue spikes won't get the better of your equipment. Contactors like this one are commonly found in HVAC equipment and irrigation systems.

Features & Benefits

• Mechanical lifespan of 10 million switching cycles for long-term performance
• Snaps easily onto a DIN rail, so mounting is hassle-free
• Works reliably at temperatures from -25°C to +60°C for use in challenging environments
• Compact dimensions of 170 (H) x 90 (W) x 60mm (D) to fit in small machinery
• Screw terminals let you breeze through installation without specialist tools

What's the power rating of this component?

This contactor has a power rating of 55kW, making it a suitable option to install in your heavy-duty systems.

Does this contactor work with inductive loads?

Yes. As this product falls into the AC-1, NAC-3 and AC-4 utilisation categories, you can use it with both resistive and inductive loads.

Note

Eaton formerly known as Moeller

Eaton DILM115(RAC240) Contactor Datasheet

Instruction Sheet - 239548 DILM115(RAC240)

Catalogue - Switching and Protecting Motors
