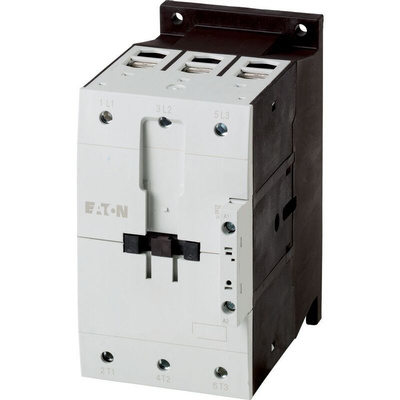

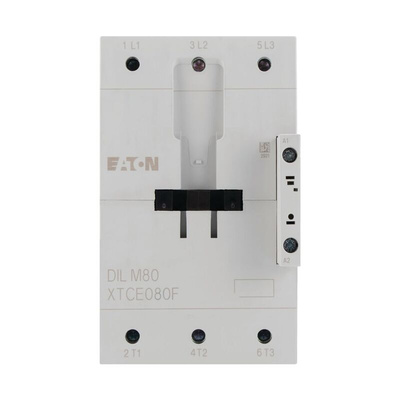

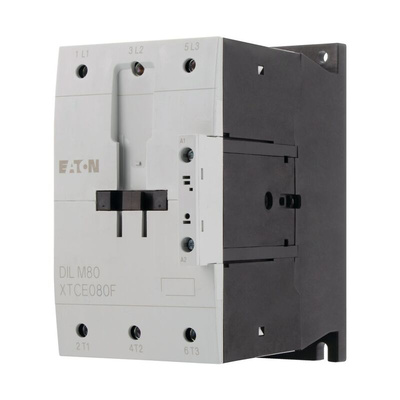

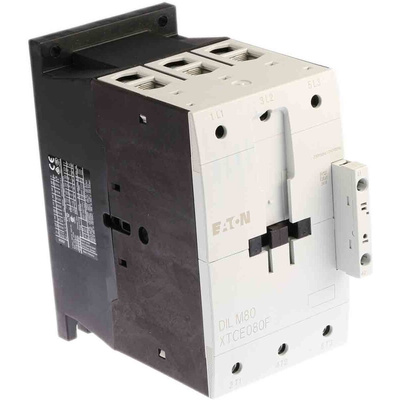

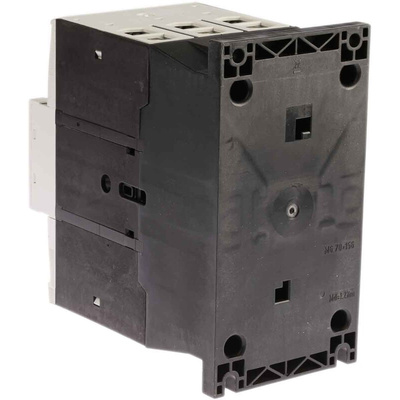

239402 DILM80(230V50HZ,240V60HZ), Eaton Contactor, 230 V ac Coil, 3-Pole, 80 A, 37 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, Screw Terminal Type, 37kW Power Rating - DILM Series - 239402 DILM80(230V50HZ,240V60HZ)

Searching for a device that offers reliable power-jogging capabilities for your industrial operation? Pick up this contactor from Eaton. Its inbuilt coil is energised by 230V AC, making it ideal for applications such as industrial automation and process control. As it delivers reliable performance in a temperature range between -25°C and +40°C when enclosed, it's at home in challenging settings. You can put it to the test with fast-paced factory jobs, thanks to an operating frequency of up to 3,600 operations per hour.

Features & Benefits

• 3 poles provide versatile connection options for your circuitry
• Mechanical lifespan up to 10 million operations for long-term reliability
• 8kV impulse protection stops overvoltages from damaging equipment and disrupting your workflow
• Straightforward surface mounting doesn't need specialist tools, enabling fast setup

What type of motors are compatible with this contactor?

It's compatible with AC-1, NAC-3 and AC-4 motors. You can also use the contactor with appliances that have an efficiency class of IE3.

What size is this unit?

Compact dimensions of 175 (D) x 170 (L) x 111mm (W) make this a space-efficient choice that's easy to handle.

Note

Eaton formerly known as Moeller

DIL M 7-150 Catalogue

DILM80(230V50HZ,240V60HZ)-6324964 Datasheet

Instruction Sheet - DILM(C)80/90
