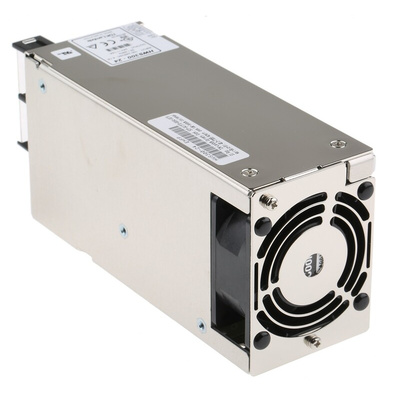

TDK-Lambda Switching Power Supply, HWS300-24, 24V dc, 14A, 336W, 1 Output, 120 → 330 V dc, 85 → 265 V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda HWS series 336W single output AC to DC embedded switch mode power supply has an output current rating of 14A at 24VDC. It has a universal input supply voltage rating from 85VAC to 265VAC/120VDC to 330VDC.
Note:
Peak load current for 10 seconds (maximum) ON time, 35% duty cycle. The de-rate output above 50°C. Depth excludes terminal block/ connectors.

Features and Benefits

Adjustable output voltage (±20%)
Built-in fan on 300W to 1500W types
Conforms to SEMI F47 requirements for semiconductor manufacturing equipment
Designed for high reliability
Easy installation
Exceptionally compact, requires typically 50% less space than previous generation products
LED indicator for power ON
Long product lifecycle
Overvoltage and overcurrent protection
Screw terminals

Certifications

CE certified
CSA 60950-1
CSA approved
EN 50178
EN 55022-B
EN 60950-1
EN 61000-3-2 (power factor correction)
FCC class B
UL 60950-1
UL508
