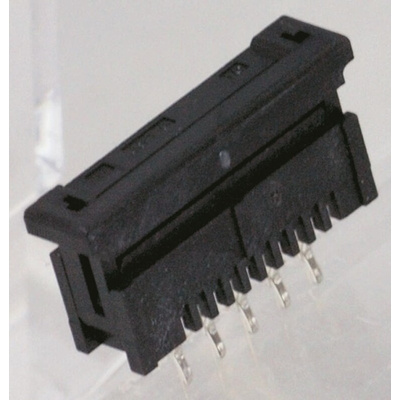

22FMZ-BT (LF)(SN), JST 1mm Pitch 22 Way Straight Female FPC Connector, Разъем

JST FMZ series 1.0mm FFC Connectors

The FMZ range of ZIF (zero insertion force) FFC connectors from JST was developed to increase wear resistance and extend the mating life of the connectors. They feature a double-leaf contact construction which provides a stable connection and enhances reliability. Both top and side entry versions are available, with from 6 to 30 ways.

• Voltage rating: 50V ac/dc
• Current rating: 0.5A
• Initial contact resistance: < 20mΩ
• Zero insertion force mechanism
• Double leaf contacts
• UL Recognized E60389
• CSA Certified LR20812
• RoHS Compliant

1.0mm FFC/FPC Connectors, JST

FMZ Connector Data Sheet
