930726101, Hirschmann Test & Measurement Red Male Banana Plug, 4 mm Connector, Screw Termination, 16A, 60V dc, Nickel Plating

BUELA 20 K Series, Red Banana Plug Connector, 4 mm, 16 A system

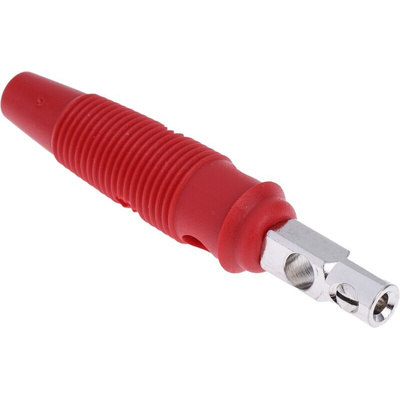

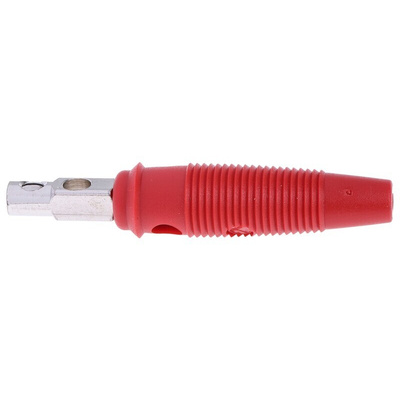

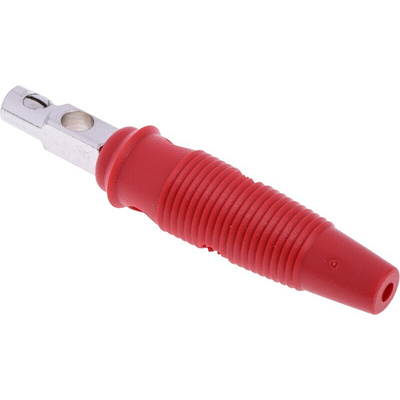

The Hirschmann Test & Measurement red, male banana plug is a 4mm pin, multiple-spring wire connector. The connector consists of a flexible insulated sleeve with a transverse hole. The tapering sleeve end also serves as kinking protection for the lead. It has a voltage rating of 30 V ac/60V dc and a current rating of 16A.

Features and Benefits

4mm Pin
Spring loaded
Screw connection up to maximum cable cross-section of 1.5mm²
Nickel plated brass contacts
Insulation material is PVC-P
Contact resistance is 3mOhm
Shatter-proof
Length is 60mm
Temperature range: -25°C to +70°C
CAT I

Applications

These 4 mm red male connectors are popular as they can be connected and disconnected quickly and provide a high-quality connection in both electrical and electronic applications.

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
