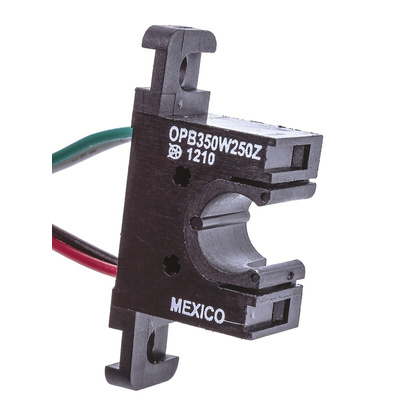

OPB350W250Z Optek, Screw Mount Reflective Optical Sensor, Phototransistor Output, Датчик

Tube Liquid Sensor

The OPB350 series liquid sensor is designed to work with 3.2mm (1/8 inch) and 6.3mm (1/4 inch) outside diameter clear tubes. Used in conjunction with suitably designed output reference circuitry, output states such as "fluid present", "no fluid present" and "no tube present" can be recognised. Clear liquid present causes the phototransistor to sink the maximum current, while dark liquid present causes it to sink the minimum current. As bubbles pass through the tube, the signal will vary between the liquid present and no liquid states. If no liquid is present, the phototransistor sinks only a small amount of current. If no tube is present, the phototransistor sinks a larger current than in the no liquid state.

Opaque plastic housing enhances ambient light rejection

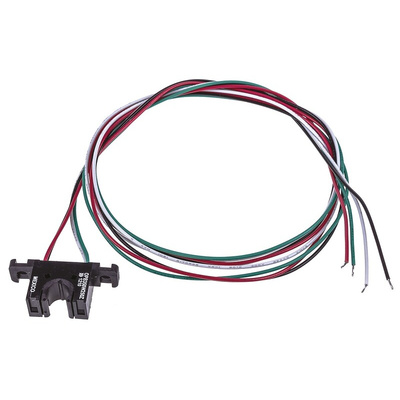

Lead length 610mm, 26 AWG wire
Applications: non-contact sensing of oils and other petroleum products, coloured fluids, toner fluids and water

Tube Liquid Sensor OPB350 Series Data Sheet
