RS PRO 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

RS PRO 9 Way Cable Mounting D-sub Connector Socket, 2.77 mm Pitch

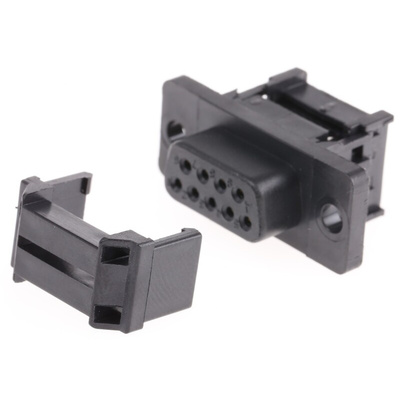

This RS PRO connector is a cable mounting D-sub connector socket with nine contacts. D-sub connectors take their name from their D-shaped shield and are a commonly used type of electronic connector.
This connector socket has a thermoplastic shield and plastic strain relief for added protection. Its thermoplastic material is characterised by resistance to impact and longevity, so you can be sure the unit will last a long time. The contacts are made from copper with gold-over-nickel plating to provide a reliable and precise connection.
D-sub connectors are known for their strength, which makes them perfect for applications in harsh environments. This unit is tested against electrostatic discharge (ESD) requirements and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, so you can be certain the risk of discharge is reduced. It also complies with Restriction of Hazardous Substances (RoHS) standards so includes only minimal amounts of any harmful materials.

Features and Benefits

• Straight body orientation
• Copper alloy contact material
• Gold-over-nickel contact plating
• Current rating of 3 A
• Dimensions of 30.8 (length) x 12.5 (width) x 5.9 mm (depth)
• Female gender
• Thermoplastic housing material
• Maximum operating temperature of +105°C
• Minimum operating temperature of -55°C
• Cable mounting type
• Nine contacts
• Pitch of 2.77 mm
• IDC (insulation displacement connector) termination method
• Voltage rating of 250 V
