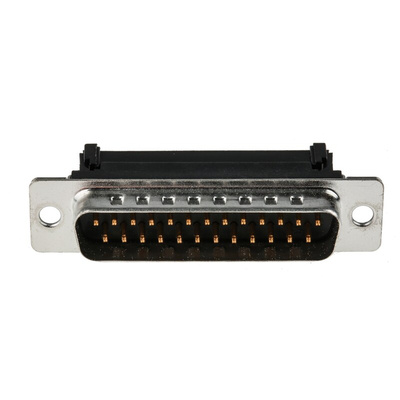

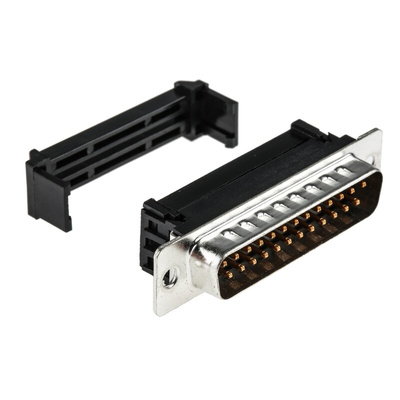

RS PRO 25 Way Cable Mount D-sub Connector Plug, 2.77 mm Pitch

This RS PRO 25-way cable-mount D-Sub connector plug is often used in electrical engineering and computing to terminate signals safely.

The connector plug has one male entry port with 25 contacts. This enables it to provide a steady connection. Its reliability is increased by the 0.8 μm selective gold-plated pins that mean it can conduct signals at a 1 A current rating.

As it's compact in design, the connector plug takes up little space. It's also housed in a robust metal casing and has a straight body orientation. It's designed for forming links between electrical connections on circuit boards, which you can achieve by connecting insulated or ribbon cables together.

The connector has an IDC (insulation displacement contact) termination and as it's made from minimal levels of dangerous materials, it's RoHS (Restriction of Hazardous Substances) compliant. It also operates safely at temperatures ranging from -55°C to +85°C.

Features and Benefits

• Straight body orientation
• Metal housing material
• Male entry port with 25 contacts
• 0.8μm selective gold-plated pins
• Current rating of 1 A
• Minimum operating temperature of -55°C
• Maximum operating temperature of +85°C
• RoHS (Restriction of Hazardous Substances) compliant
• Pitch of 2.77 mm

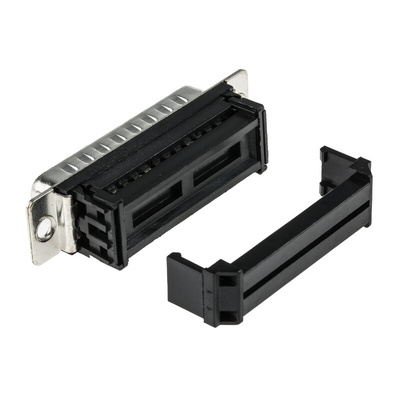

• IDC (insulation displacement contact) termination
