RS PRO 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

RS PRO 9 Way Cable Mount D-sub Connector Socket, 2.77 mm Pitch

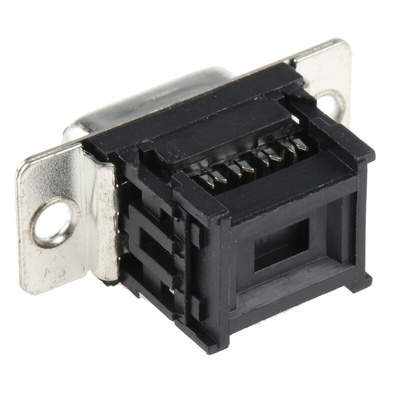

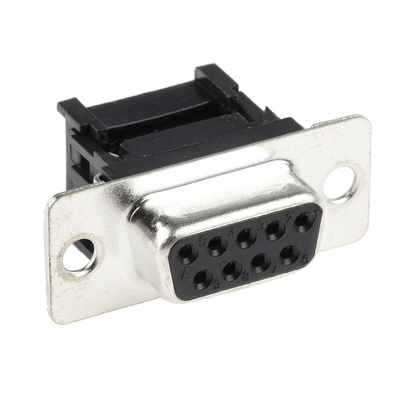

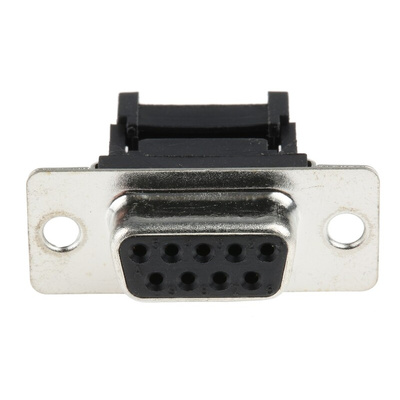

This RS PRO 9-way cable-mount D-Sub connector socket is used to link electrical connections on circuit boards. The connector has an IDC (insulation displacement contact) termination and is designed to connect with an insulated or ribbon cable.

Housed in metal and with a straight body orientation, the connector has a low-profile body that takes up little space. It has one female entry port with 9 contacts to ensure a secure connection. With 0.8 μm selective gold-plated pins, it reliably conducts your signal at a 1 A current rating.

The connector is RoHS (Restriction of Hazardous Substances) compliant, being made with minimum levels of dangerous materials. It operates safely at temperatures ranging from -55°C to +85°C. It's commonly used in computing and electrical engineering to terminate signals both reliably and safely.

Features and Benefits

• Straight body orientation
• Metal housing material
• Female entry port with 9 contacts
• 0.8μm selective gold-plated pins
• 1 A current rating
• Minimum operating temperature of -55°C
• Maximum operating temperature of +85°C
• RoHS (Restriction of Hazardous Substances) compliant
