RS PRO 25 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

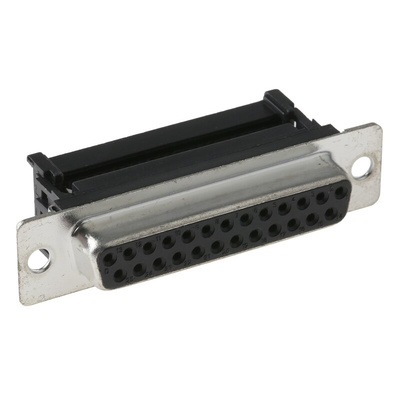

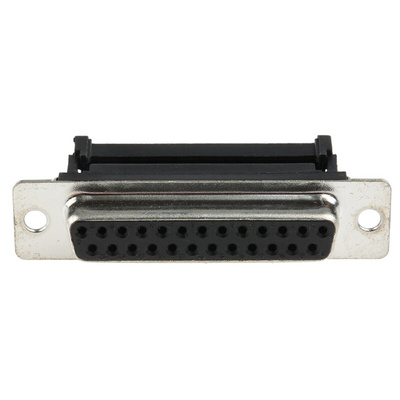

RS PRO 25 Way Cable Mount D-sub Connector Socket, 2.77 mm Pitch

This 25-way cable-mount D-Sub connector socket is typically used in electrical engineering and computing. It allows connections on circuit boards between insulated and ribbon cables and can terminate signals safely and effectively.

It has a metal casing and can operate safely at temperatures between -55°C and +85°C. With its nine contacts, it can provide a steady connection. This is helped further by the 0.8 μm selective gold-plated pins that allow the connector to conduct signals efficiently at a 1 A current rating. The connector has a straight body orientation and one female entry port. It is also compact in design so requires little room.

The connector is made with low levels of dangerous materials, making it RoHS (Restriction of Hazardous Substances) compliant. What's more, it has an IDC (insulation displacement contact) termination.

Features and Benefits

• Straight body orientation
• Metal housing material
• Female entry port with 25 contacts
• 0.8μm selective gold-plated pins
• Current rating of 1 A
• Dimensions of 18.2 mm x 12.55 mm
• Minimum operating temperature of -55°C
• Maximum operating temperature of +85°C
• RoHS (Restriction of Hazardous Substances) compliant
• IDC (insulation displacement contact) termination

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
