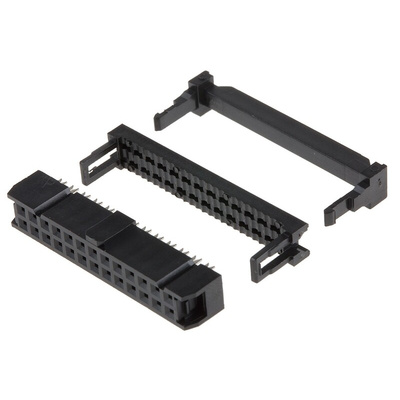

RS PRO 26-Way IDC Connector Socket for Cable Mount, 2-Row, Разъем

RS PRO 26-Way IDC Connector Socket, Cable Mount, 2 Row

Need extra terminal points on your printed circuit board? This IDC (insulation-displacement contact) connector from RS PRO lets you attach multiple contacts to an insulated wire without having to strip, solder or crimp your termination points.
The socket is easy to install thanks to its sharp blades that easily slice through insulation. Its blades then make an air-tight seal with the conductor's inner wiring for an extremely reliable and durable join. Strain relief on this unit enhances its functionality by ensuring your connections have a long life span. Its reinforced housing is extremely strong, making it suitable for harsh industrial environments.
You can use this socket for making connections to wires that are impractical to move or disconnect. It's also suitable for testing and diagnostic applications. For additional peace of mind, this product comes with a three-year warranty.

Features and Benefits

• Right angle body orientation
• Phosphor bronze contact material
• Gold-over-nickel contact plating
• Current rating of 1 A
• Voltage rating of 500 V DC
• Female gender
• Glass fibre-reinforced PBT (polybutylene terephthalate) housing
• Operating temperature range of -40°C to +105°C
• For cable mounting
• 26 contacts
• Two rows
• Pitch of 2.54 mm
• IDC termination method
