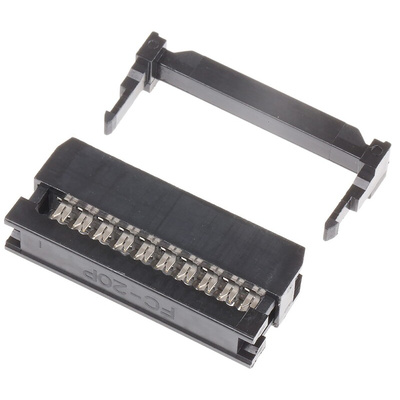

RS PRO 20-Way IDC Connector Socket for Cable Mount, 2-Row

Use this IDC (insulation-displacement contact) connector from RS PRO if you need extra terminal points on your printed circuit board (PCB). It's an ideal solution when you need to make connections to wires that are impractical to move or disconnect.


The socket allows you to attach multiple contacts to an insulated wire without the need to strip, crimp or solder your termination points. Instead, it comes with sharp blades that easily slice through insulation to make an air-tight seal with the conductor's inner wiring, giving you a durable and highly reliable join. The socket also comes with strain relief, so your connections will last for longer.


This socket is suitable for testing and diagnostic applications. Its strong, reinforced housing makes it a good choice for use in harsh industrial environments. This product comes with a three-year warranty for additional peace of mind.

Features and Benefits

• Right angle body orientation


• Phosphor bronze contact material


• Gold-over-nickel contact plating


• Current rating of 1 A


• Voltage rating of 500 V DC


• Female gender


• Glass fibre-reinforced polybutylene terephthalate (PBT) housing


• Operating temperature range of -40°C to +105°C


• For cable mounting


• 20 contacts


• Two rows


• Pitch of 2.54 mm


• IDC termination method
