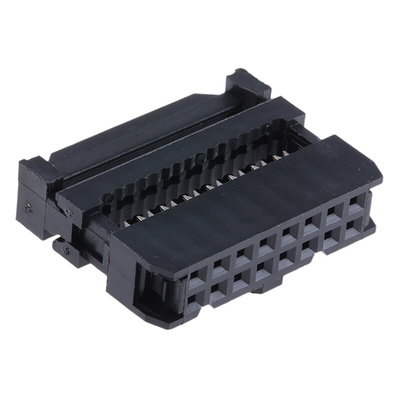

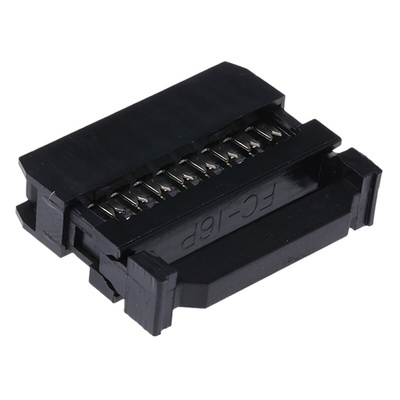

RS PRO 16-Way IDC Connector Socket for Cable Mount, 2-Row

When you need additional terminal points on your printed circuit board (PCB), turn to this insulation-displacement contact (IDC) connector from RS PRO. It's a good choice for making connections to wires that are difficult or impractical to disconnect or move.


The socket allows you to add multiple contacts to an insulated wire without having to worry about stripping, soldering or crimping your termination points. It comes with sharp blades that easily slice through insulation, making an air-tight seal with the conductor's inner wiring. This will give you a durable and highly reliable join. For long-lasting connections, this unit also comes with strain relief.


This product is often used for testing and diagnostic applications. It's fitted with a strong, reinforced housing, so it can withstand heavy-duty use in harsh industrial environments. As as extra guarantee, it comes with a three-year warranty.

Features and Benefits

• Right angle body orientation


• Phosphor-bronze contact material


• Gold-over-nickel contact plating


• Current rating of 1 A


• Voltage rating of 500 V DC


• Female gender


• Glass fibre-reinforced polybutylene terephthalate (PBT) housing


• Operating temperature range of -40°C to +105°C


• For cable mounting


• 16 contacts


• Two rows


• Pitch of 2.54 mm


• IDC termination method
