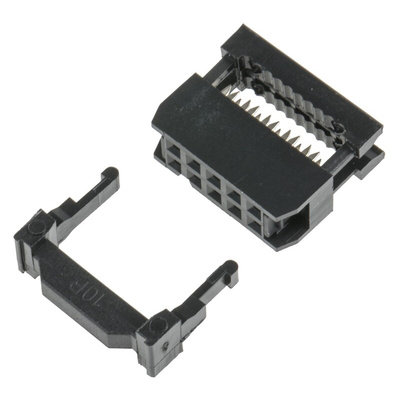

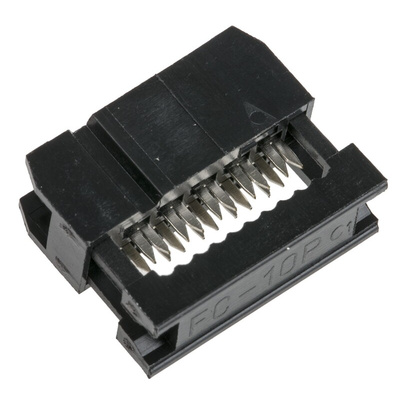

RS PRO 10-Way IDC Connector Socket for Cable Mount, 2-Row

This 10-way IDC connector from the RS PRO range offers a quick and easy way to terminate a ribbon cable. Its sharp contact points pierce the wire so you don't need to do any stripping. Suitable for cable mounting, this socket's right-angled orientation enables you to get the most from your space. This type of plug is commonly used in low-voltage applications like computing and telecommunications.

Gold-plated contacts maximise conductivity. The 30% glass-filled polybutylene terephthalate (PBT) housing gives it strength and functions as an excellent insulator. This heat-resistant connector can work up to +105˚C and down to -40˚C. It's voltage rated at 500 V dc and amp rated at 1 A.

The plug's been tested against international standards to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It contains only minimal levels of hazardous substances (RoHS).

Features and Benefits

• 10-Way female IDC connector socket
• 2-Row
• Cable mounting
• 2.54 mm long
• Operating temperature range -40˚C to +105˚C
• Gold-over-nickel plated contacts for low contact resistance
• Right-angle orientation
• Voltage rating of 500 V
• Current rating of 1 A
• Insulation resistance of 5,000 mΩ a minute at dc 500 V
• Glass fibre reinforced PBT housing
• Phosphor bronze contact material

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

IDC
