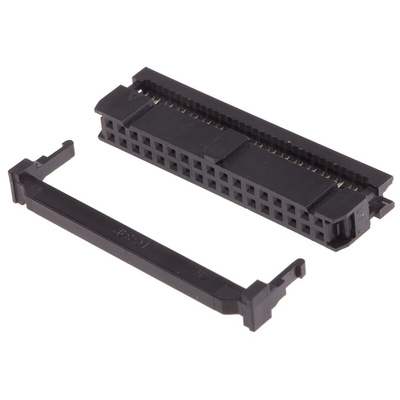

RS PRO 40-Way IDC Connector Socket for Cable Mount, 2-Row

This insulation-displacement contact (IDC) connector from RS PRO allows you to add extra terminal points on your printed circuit board (PCB). Use it when you need to make connections to wires that would be impractical to move or disconnect.


To save you time and effort, the socket allows you to attach additional contacts to an insulated wire without stripping, soldering or crimping your termination points. It comes fitted with sharp blades that can easily slice through insulation to create an air-tight seal with the conductor's inner wiring, giving you a durable and reliable join. The unit also features strain relief to ensure long-lasting performance.


The socket's reinforced housing is strong enough to withstand use in demanding industrial environments. You can use it for tasks such as diagnostic and testing applications. It also comes with a three-year warranty for additional peace of mind.

Features and Benefits

• Right angle body orientation


• Phosphor bronze contact material


• Gold-over-nickel contact plating


• Current rating of 1 A


• Voltage rating of 500 V DC


• Female gender


• Glass fibre-reinforced polybutylene terephthalate (PBT) housing


• Operating temperature range of -40°C to +105°C


• For cable mounting


• 40 contacts


• Two rows


• Pitch of 2.54 mm


• IDC termination method
