MEAN WELL Switching Power Supply, RD-125A, 5 V dc, 12 V dc, 7.7A, 130.9W, Dual Output, 176 → 264 V ac, 248, Источник питания

Mean Well Switch Mode Power Supply

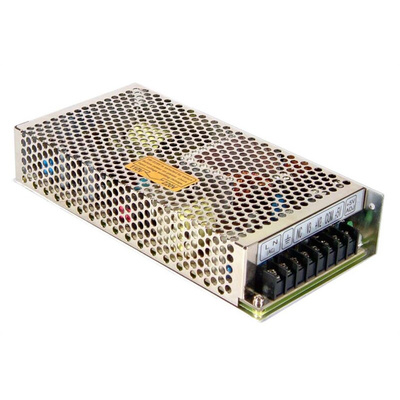

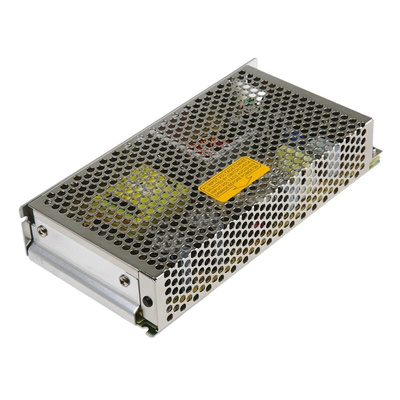

The Mean Well RD-125A series 130.9W dual outputs AC to DC enclosed switch mode power supply has an output current rating of 7.7A at 5VDC and 7.7A at 12VDC. It has a universal input supply voltage rating ranging from 88VAC to 132VAC/176VAC to 264VAC (selected by switch) and 248VDC to 373VDC(Withstand 300VAC surge for 5second Without damage).

Features and Benefits

Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
Easy installation
High efficiency
High operating temperature up to 70°C
High reliability
Long life
Long life electrolytic capacitors 105°C
Miniature size, high power density
Output current data
Overload and overvoltage protection
Screw terminals
Short circuit
The total load must not exceed the rated output power

Certifications

CB approved
EN 55022 Class B (EMC)
EN 61000-3-2 (Power factor correction)
EN60950
TUV approved
UL approved
UL60950

RD-125 Series specification sheet

Declaration Of Conformity
