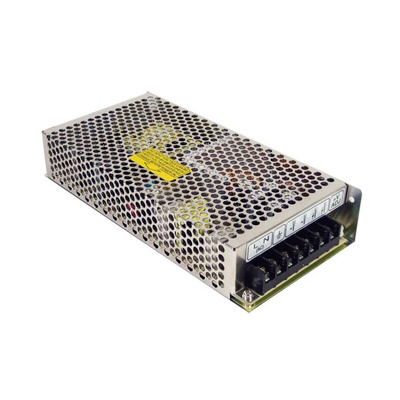

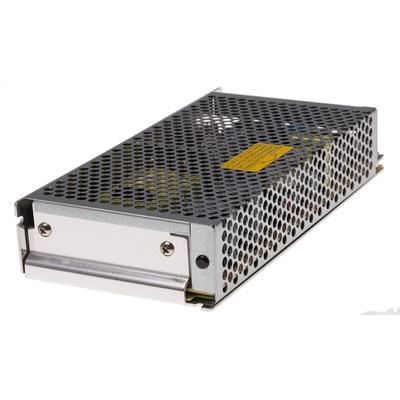

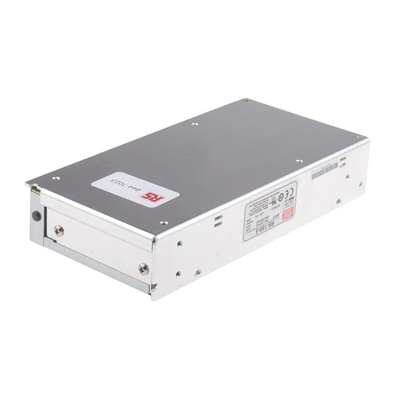

MEAN WELL Switching Power Supply, RS-150-5, 5V dc, 26A, 130W, 1 Output, 176 → 264 V ac, 248 → 373 V dc,, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RS-130 series 130W single output AC to DC embedded switch mode power supply has an output current rating of 26A at 5VDC. It has a universal input supply voltage rating from 88VAC to 132VAC/176VAC to 264VAC (selected by switch) and 248VDC to 373VDC (withstand 300VAC surge for 5 seconds without damage).
Note:
De-rating 2% per °C above 50°C on all types except

RD50, 65, 125, RS-75-3.3 types de-rating 2% per °C above 45°C.
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C.

Features and Benefits

high-efficiency up to 78%
Long life and high reliability
High power density
High operating temperature up to 70°C
Long life electrolytic capacitors 105°C
Easy installation
Screw terminals
Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
The total load must not exceed the rated output power
Full load burn-in test is 100%
LED indicator for power on
Short circuit protection
Cooling by free air convection
Withstands a 5G vibration test
Overload and overvoltage protection

Certifications

EN60950
UL60950
UL approved
TUV approved
CB approved
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
UL60950-1
TUV EN60950-1

RS-150 Series specification sheet

Declaration Of Conformity
