MEAN WELL Switching Power Supply, RD-35A, 5 V dc, 12 V dc, 1A, 32W, Dual Output, 125 → 373 V dc, 88 → 264, Источник питания

Mean Well Switch Mode Power Supply

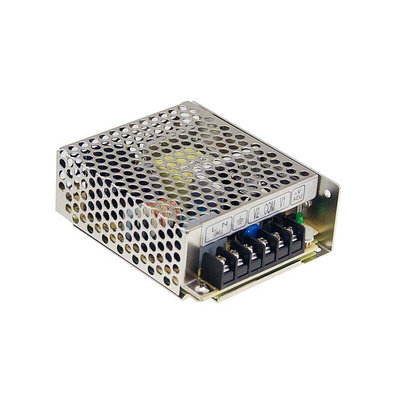

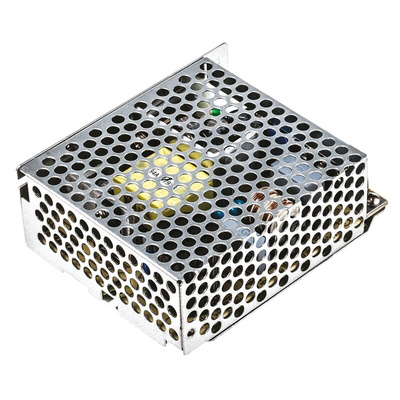

The Mean Well RD-35A series 32W dual outputs AC to DC enclosed switch mode power has an output current rating of 4A at 5VDC and 1A at 12VDC. It has a universal input supply voltage rating ranging from 88VAC to 264VAC/125VDC to 373VDC.
Note:
De-rating 2% per °C above 50°C on all types except

RD50, 65, 125, RS-75-3.3 types de-rating 2% per °C above 45°C.
RD85, RS-100-3.3, RS-150-3.3 and 5 de-rating 2% per °C above 40°C.

Features and Benefits

Adjustable output voltage for dual output types on output 1, -5% to 10%
Dual outputs have a minimum load requirement
Easy installation
High efficiency
High operating temperature up to 70°C
High reliability
Long life
Long life electrolytic capacitors 105°C
Miniature size, high power density
Output current data
Overload and overvoltage protection
Screw terminals
Short circuit
The total load must not exceed the rated output power

Certifications

CB approved
EN 55022 Class B (EMC)
EN 61000-3-2 (Power factor correction)
EN60950
TUV approved
UL approved
UL60950

RD-35 Series specification sheet

Declaration Of Conformity
