MEAN WELL Switching Power Supply, RPS-60-12, 12V dc, 5A, 60W, 1 Output, 127 → 370 V dc, 90 → 264 V ac, Источник питания

Mean Well Power Medical Power Supply

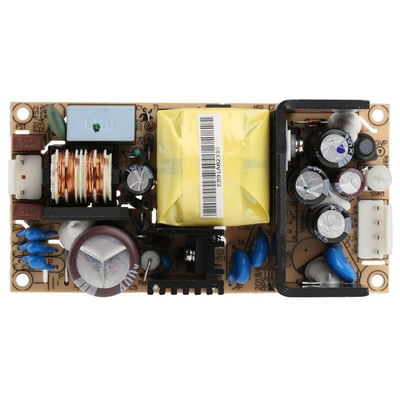

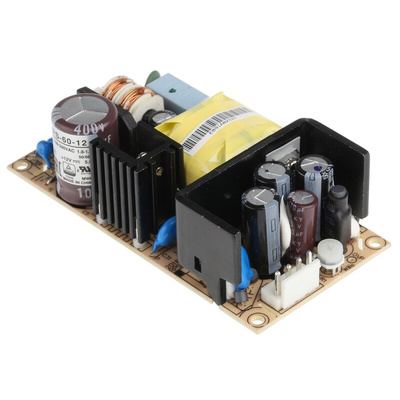

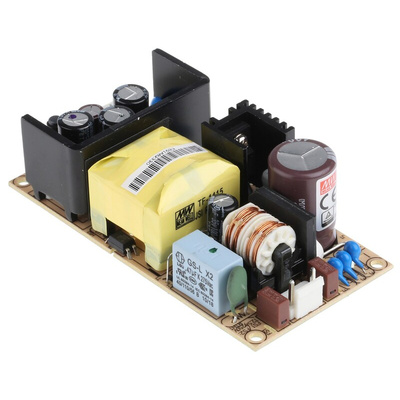

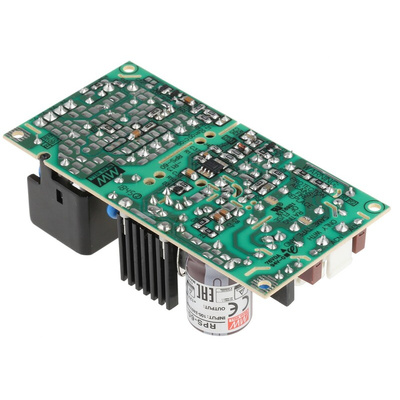

The Mean Well RPS-60 series 60W single output AC to DC PCB type medical power supply has an output current rating of 5A at 12VDC. It has a universal input supply voltage rating from 90VAC to 264VACand 127VDC to 370VDC.
Note:
De-rating 2% per °C above 50°C
MTBF to MIL-HDBK-217F (25°C)

Features and Benefits

Miniature size is 2in long and 4in wide
High power density
high-efficiency up to 84%
Long life and high reliability
Energy saving power supply
No load power consumption less than 0.75W
Medical safety approved
Low leakage current less than 200μA
Adjustable output voltage (-5 to 10%)
Short circuit
Overload and overvoltage protection
Extra 10% 'peak current' rating for 10 seconds
Cooling by free air convection
EMI class B for class configuration

Applications

Oral irrigator
Hemodialysis machine
Medical computer monitor
Sleep Apnea device

Certifications

EN 61000-3-2 (harmonic current compliance)
EN 55022 class B (EMC)
TUV, CB, UL recognised component for Canada and US
EN55011 (CISPR11)
EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11

RPS-60 Series specification sheet

Declaration Of Conformity
