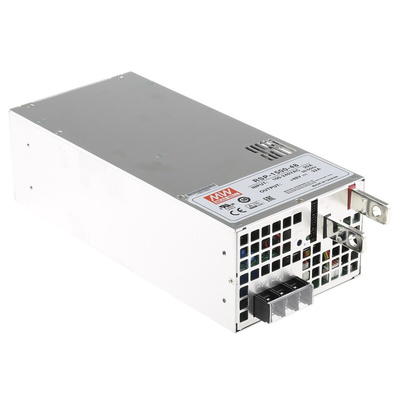

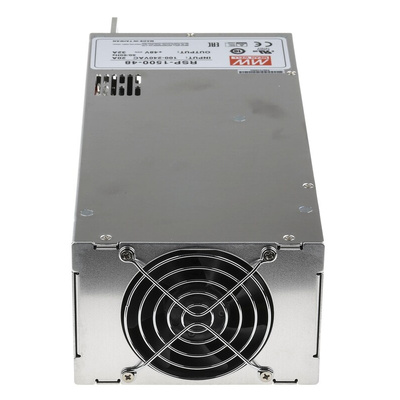

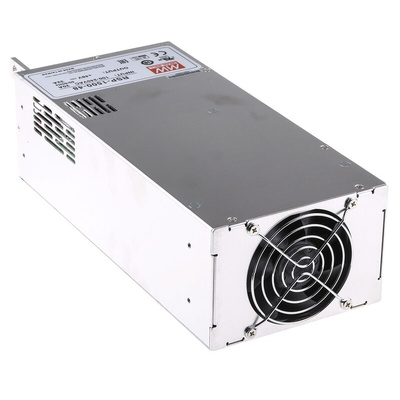

MEAN WELL Switching Power Supply, RSP-1500-48, 48V dc, 32A, 1.5kW, 1 Output, 127 → 370 V dc, 90 → 264 V, Источник питания

Mean Well Power Switch Mode Power Supply

The Mean Well RSP-1500 series 1536W single output embedded switch mode power supply has an output current rating of 32A at 48VDC. It has a universal input supply voltage rating from 90VAC to 264VAC and 127VDC to 370VDC.
Note:
Derate output 2% per °C above 45°C (12V), 50°C (24, 27, 48V). The depth excludes terminal block.

Features and Benefits

high-efficiency up to 91%
Long life and high reliability
Built-in fan
Remote sense
Remote ON-OFF control
Alarm signal output
Current sharing up to 6000W (3+1)
LED indicator for power on
Easy installation, input screw terminals and output 2xM8 bolts (supplied)
Adjustable output voltage (±10%)
Short circuit protection
Overload protection
Overvoltage and over temperature protection

Applications

Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Burn-in facility
Digital broadcasting
RF application

Certifications

EN 60950
UL 60950
EN 61000-3-2 (harmonic current)
EN 55022 class B (EMC)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN55032 (CISPR32) / EN55011 (CISPR11)
EN61000-3-2
EN61000-3-3
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
EN61000-4-11

RSP-1500 Series specification sheet

Declaration Of Conformity
