MEAN WELL Embedded Switch Mode Power Supply SMPS, SP-320-48, 48V dc, 6.7A, 321.6W, 1 Output, 124 → 370 V dc, 88, Источник питания

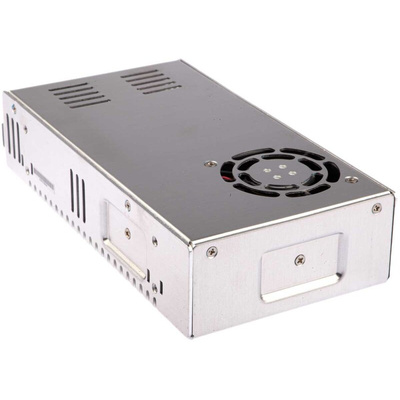

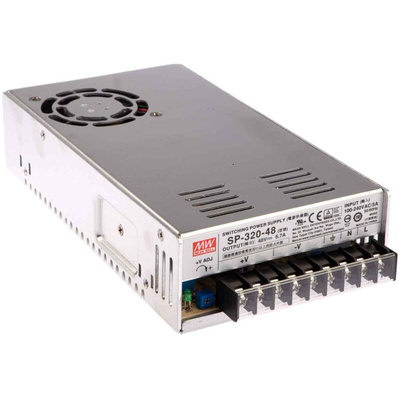

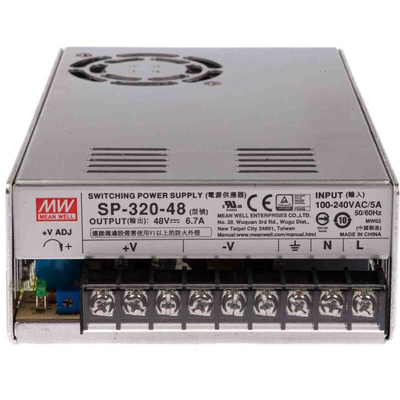

Mean Well Embedded Switch Mode Power Supply

The Mean Well SP-320 series 321.6W single output AC to DC embedded switch mode power supply has an output current rating of 6.7A at 48VDC. It has a universal input supply voltage rating from 88VAC to 264VAC and 124VDC to 370VDC.
Note:
Derate output 2% per °C above 50°C
Depth does not include terminal block

Features and Benefits

high-efficiency
Long life and high reliability
Built-in constant current limiting circuit, suitable for battery charging
Built-in fan with speed control
Remote ON-OFF control
LED indicator for power on
Easy installation
Screw terminals
Adjustable output voltage
Short circuit
Overload
Overvoltage and over temperature protection

Certifications

EN 61000-3-2 (power factor correction)
EN 55022 class B (EMC)
EN 60950
UL 60950
EN55032 (CISPR32) class B
EN61000-4-2,3,4,5,6,8,11
ENV50204
EN55024
Criteria A

SP-320 Series specification sheet

Declaration Of Conformity
