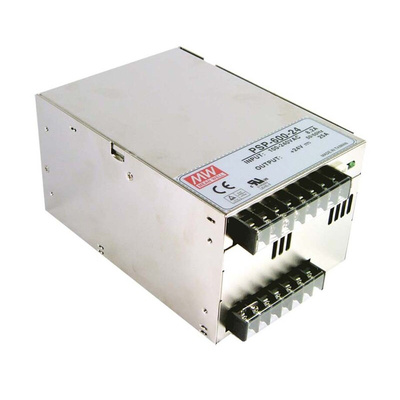

MEAN WELL Switching Power Supply, PSP-600-12, 12V dc, 50A, 600W, 1 Output, 124 → 370 V dc, 88 → 264 V ac, Источник питания

Mean Well Switch Mode Power Supply

The Mean Well PSP-600 series 600W single output AC to DC enclosed switch mode power supply has an output current rating of 50A at 12VDC. It has a universal input supply voltage rating ranging from 88VAC to 264VAC/124VDC to 370VDC.
Note:
Derate output 2% per °C above 50°C and below 0°C (no derating below 0°C to -20°C for SP750 Series). Depth excludes terminal blocks.

Features and Benefits

Adjustable output voltage (±10%)
Built-in fan with speed control
Current sharing up to 2400W (3+1) (PSP-600 series only)
Easy installation
High efficiency up to 84%
High reliability
LED indicator for power on
Long life
Overload
Overvoltage and over temperature protection
Remote ON-OFF control
Remote sense
Screw terminals
Short circuit

Certifications

CB approved
EN 55022 Class B(EMC)
EN 60950
EN 61000-3-2 (Power factor correction)
TUV approved
UL 60950

PSP-600 Series specification sheet

Declaration Of Conformity
