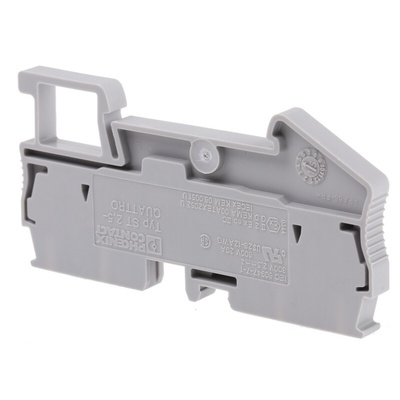

3031306, Phoenix Contact ST 2.5-QUATTRO Series Grey Feed Through Terminal Block, 2.5mm², 1-Level

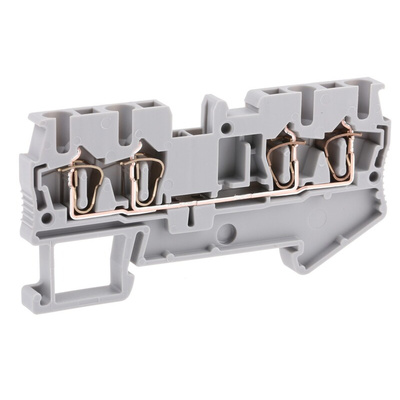

Four-wire spring-loaded terminals ST...-QUATTRO

Four wires on one potential through twin connection
Usable as a compact power distributor
FBS plug-in bridge systems enable further power distribution variations

Approvals

Approvals: UL/CUL

Phoenix Contact Feed-Through Terminal Block, 8kV Surge Voltage Rating, 5.2mm Width - ST 2.5-QUATTRO - 3031306

Need a way to create a dependable link between wires and your PCB? Pick up this feed-through terminal block from Phoenix Contact. It has a dual-connection design, so you can control a pair of circuits simultaneously and reduce your wiring needs. The unit's polyamide housing withstands mechanical impact and abrasion, so it's a reliable choice to install in rugged industrial environments. This material also acts as an insulator, so you're protected from electric shocks.
A rated surge voltage of 8kV means the device can handle sudden power surges, making it suitable for use in volatile settings. Its slim width of 5.2mm means it will fit into setups with space limitations. You can fix conductors inside it using a simple screwdriver, so you don't have to reach for complex tools. This device is used in HVAC systems and telecommunications equipment.

Features & Benefits

• UL 94-V0 rating indicates that it's flame-resistant and stops burning in 10 seconds or less if a fire occurs
• Performs reliably in an operating temperature range between -60°C and +105°C
• Rating of 550V for use in high-voltage applications
