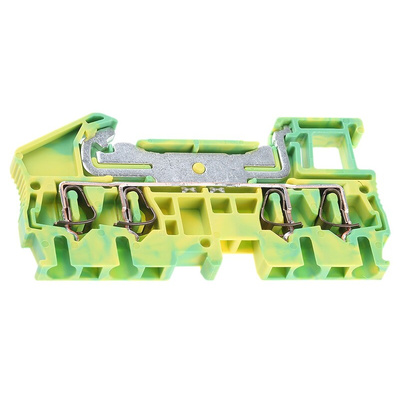

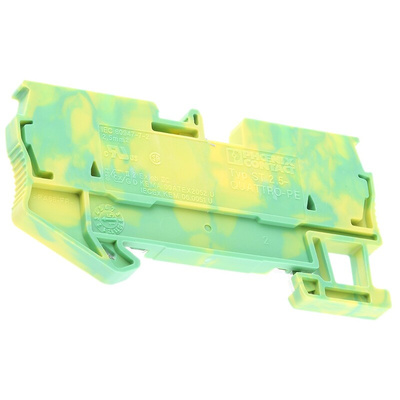

3031322, Phoenix Contact ST 2.5-QUATTRO-PE Series Green/Yellow Earth Terminal Block, 2.5mm², Single-Level, Spring Cage

Four-wire spring-loaded terminals ST...-QUATTRO

Four wires on one potential through twin connection
Usable as a compact power distributor
FBS plug-in bridge systems enable further power distribution variations

Approvals

Approvals: UL/CUL

Phoenix Contact Green/Yellow Earth Terminal Block, 28 to 12AWG, 2.5mm² - ST 2.5-QUATTRO-PE - 3031322

Use this ground terminal block from Phoenix Contact to safely terminate machine and panel earth wires to your DIN rail. This versatile component allows up to four connections at a time and enables the DIN rail to function as a busbar for flexible electricity distribution.
The unit is highly durable and extensively tested. It's made from insulating polyamide to protect you from electric shocks and your system from short circuits. As it's also resistant to heat and corrosion, it won't rust or burn when the wires have partial contact. The self-clamping feature of the cage spring on this component makes it easy to establish secure connections with a simple screwdriver. It also ensures your wires stay in place even in heavy vibrations.
This terminal block from Phoenix Contact is widely used in a range of industries, including rail transport and manufacturing.

• Green and yellow in colour, for immediate identification
• Standard wire size of 28 to 12AWG (American Wire Gauge)
• Weight of 12.84g ensures no unnecessary strain on your system
• Complies with IEC (International Electrotechnical Commission) 60079-7/IEC 60947-7-2 standards, ensuring a safe and reliable component
• UL (Underwriters Laboratories) 94V-0 flammability rating, meaning flame goes out after 10 seconds
