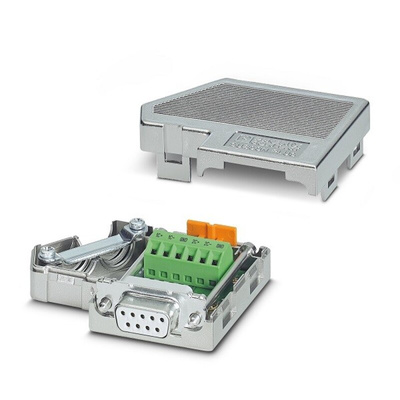

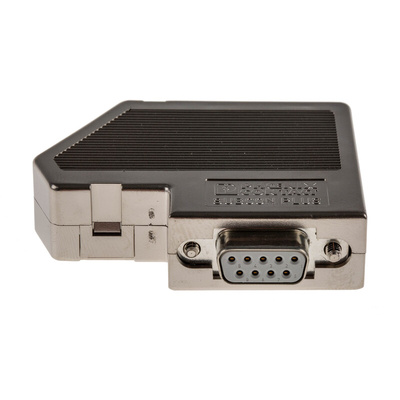

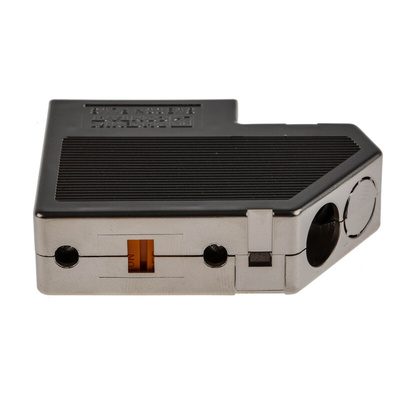

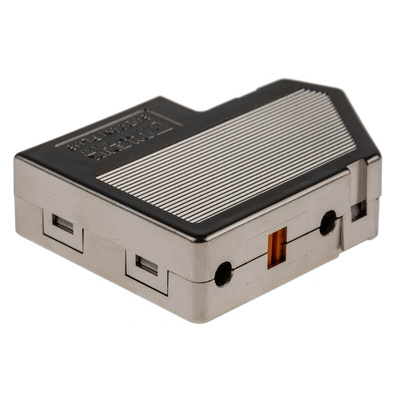

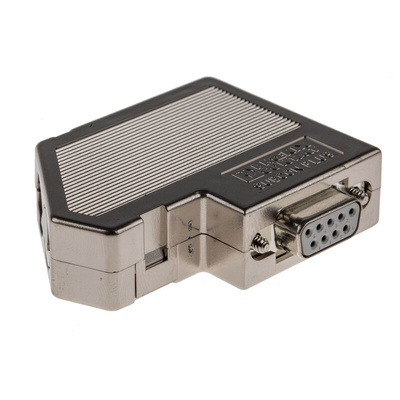

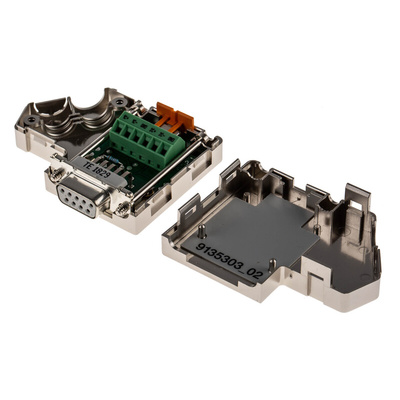

2744694, Phoenix Contact SUBCON-PLUS-CAN 9 Way Cable Mount D-sub Connector Socket, 8.5mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 26AWG, 50V Voltage Rating - SUBCON-PLUS-CAN - 2744694

Need to add a VGA plug to your setup? Install this D-sub connector from Phoenix Contact. It's compatible with CAN, CANOpen and SafetyBUS systems so it's a versatile choice when you want to quickly connect an incoming and outgoing bus line in field conditions. As the terminating resistor's already integrated, you can customise your equipment on the go. A slide switch makes activating the resisting element a breeze. Once activated, you can start your system up segment by segment and avoid incorrect terminations.
This unit has ABS insulation, which shuts out EMI to deliver crystal-clear signals you can count on. As it can be inserted and withdrawn up to 200 times, you can easily use this connector with devices that need frequent adjustment. A long mean time to failure of 155 years makes this a highly dependable option.

Features & Benefits

• Screw connection streamlines wiring
• Small dimensions of 16 (W) x 60 (L) x 44mm (H) so it takes up minimal space on your PCB
• Performs without a glitch in demanding temperatures between -20°C and +70°C
• IP40 rating indicates it's touch-proof and safe to handle

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
