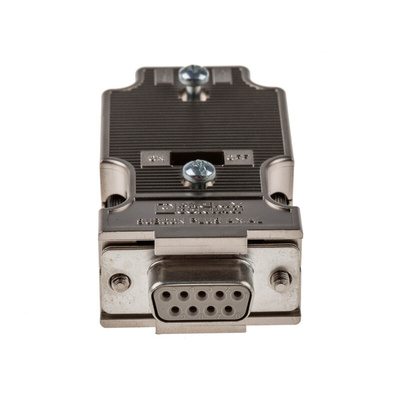

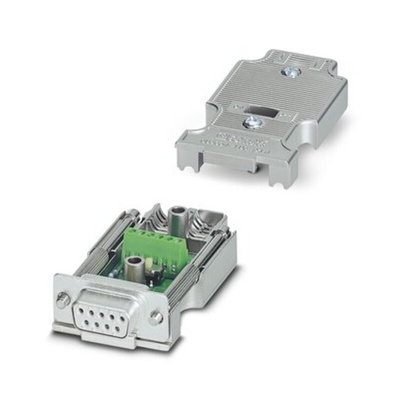

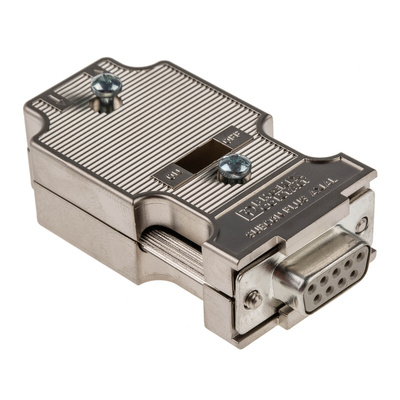

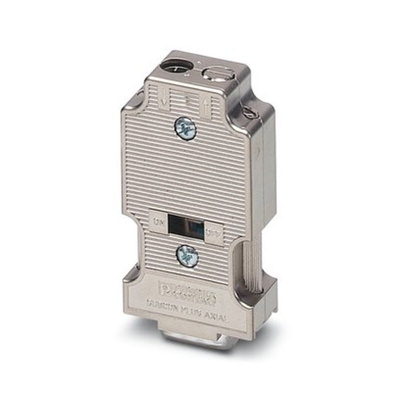

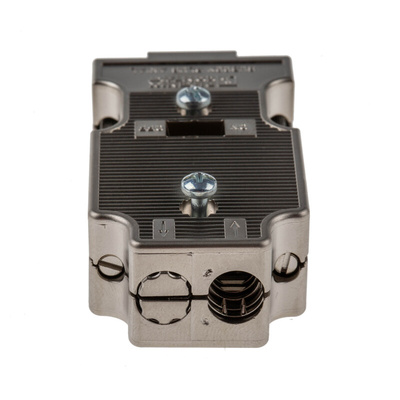

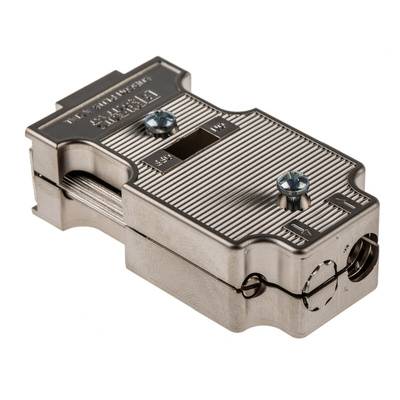

2306566, Phoenix Contact SUBCON-PLUS/AX/CAN/SO145 9 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch, Разъем

Phoenix Contact D-Sub Connector, 9 Pins, 100mA Current Rating - SUBCON-PLUS-CAN/AX - 2306566

Use this D-sub connector from Phoenix Contact to send audiovisual signals between devices. Its nine pins ensure a secure connection to a compatible plug for reliable transmission. The housing is made from metal-plated ABS for resistance to impact and corrosion, making this a suitable option for use in heavy-duty environments.
For versatility, the connector accommodates conductors ranging in size from 26 to 20AWG. A broad operating temperature range of -20°C to +75°C makes it ideal for use in demanding conditions. Thanks to its light weight of 38.8g, it puts minimal strain on your equipment and, as it has a current rating of just 100mA, it's widely compatible with low-power systems. You'll commonly find devices like this used in computer systems and medical equipment.

Features & Benefits

• IP30 rating means it's finger-safe and protected from tools and wires larger than 2.5mm in size
• ATEX certification for safe use in potentially explosive environments
• Screw termination design for ease of installation without the need for specialised tools
• Copper alloy contacts are highly conductive and corrosion-resistant for a reliable connection

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
