2708119, Phoenix Contact SUBCON-PLUS-CAN/PG 9 Way Cable Mount D-sub Connector Male/Female, 2.77mm Pitch, Разъем

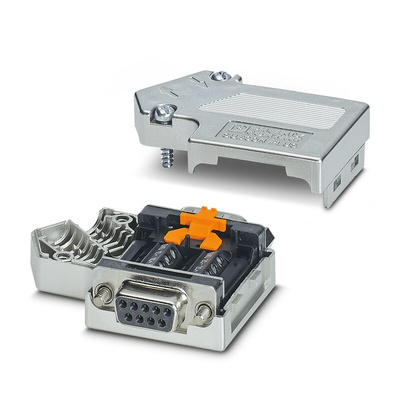

Phoenix Contact D-Sub Connector, 100mA Current Rating, 50V Voltage Rating - SUBCON-PLUS-CAN/PG - 2708119

Need a simple device that links separate terminal blocks to bus cables? This D-sub connector from Phoenix Contact lets you start up your network segment by segment. Its copper alloy contacts are highly conductive, so you get strong and efficient connections, while metal-plated ABS housing means it's a durable choice in tough conditions. You can easily swap the 35° cable entry direction from left to right to save space on your PCB.
Once installed, this versatile unit connects to incoming and outgoing CAN, CANopen or SafetyBUS-P lines in a snap. It runs at total capacity without breaking down for up to 155 years, so you can be sure it's dependable over long periods. Use it to connect programming devices to ramp up your network's capabilities.

Features & Benefits

• Screw terminal blocks make installation and wiring a breeze
• IP40 rating means it's touch-proof, so safe to handle
• Operates in a wide temperature range between -20°C and +75°C to suit demanding applications
• Handles up to 200 insertion and withdrawal cycles, so it's ideal for systems that need regular rejigging
• Termination resistor is easy to activate thanks to a slide switch

BUS connectors

Rewireable bus interface connectors suitable for Bitbus, CAN-Bus, Interbus-S (Fieldbus) and Profibus systems. Compact and high quality, the 9-pole sub-D housings are available in bus node or bus termination versions and are colour-coded for easy identification. Service nodes are also available for CAN-Bus and Profibus systems, allowing online programming and repair. Each interface comes with detailed assembly instructions and mounting accessories.

Available in versions with horizontal or vertical cable outlets
Fast and reliable connection via screw terminals on the PCB
Bus terminations include SMT termination resistors
Colour-coded bodies aid installation and repair
Safe ESD protection thanks to fully insulated housings
Supplied with reliable crimp strain relief
