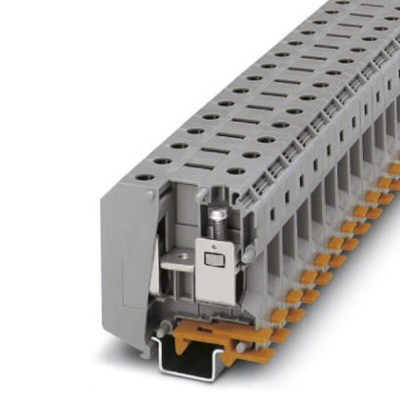

3009118, Phoenix Contact UKH 50 Series Grey DIN Rail Terminal Block, Screw Termination

UKH High-current DIN Rail Terminal Blocks - Phoenix Contact

The UKH range of high-current terminal blocks are designed to be able to handle high currents & voltages, while still backing Phoenix Contacts brilliant build quality and features. Cables are connected into screw terminal and create a solid and reliable connection that is ensured by a three-point centring of the conductor in the prismatic sleeve base. Not to mention, the low contact resistance is achieved on the contact due to ribbing. These UKH terminal blocks feature an ATEX Ex rating, meaning they can be installed in potentially explosive areas.

Finally, the terminal blocks are designed to be mounted onto DIN rails and have a footing that can fit onto NS 35/15 and NS 32 rails.

Features and benefits:

• High current ratings with a high voltage rating also


• Strong screw connection method by means of spring-loaded elements in the clamping part


• Housing built from a strong and durable polyamide material


• ATEX Ex rated - Approval for installation in potentially explosive areas


• Flexible operating temperatures: -60°C to +85°C


• AWG: 4 -3/0


• Cross-section: 25mm² to 95mm²

How do I wire a terminal block?

Terminal blocks are simple to wire. Wiring depends on what type of terminal block you have. These specific terminal blocks are screw-connection terminal blocks. For screw-connection, you simply need to strip a length of the plastic jacket and any insulation (33 mm for UKH series) required by the manufacturer, un-tighten the screw for the terminal and simply insert your wire and re-tighten the screw.

Complete Line:

The UKH series is apart of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.

Approvals

UL, CUL, CSA

Phoenix Contact brings you a high-performing and high-current range of DIN rail terminal blocks. These blocks are rated up to a maximum voltage of 1000V (1Kv) and a nominal current of 150 A while boasting an impressive range of DIN rails it can connect to so that you can incorporate these into just about any project. The 3009118 has a super-reliable cable connection that is a three-point centring of the conductor in the prismatic sleeve base. Also, you will have a low contact resistance thanks to the ribbing.

This terminal block features two connections with a cross-section of 16 mm² - 70 mm².

Features and benefits:

• Reliable cable connection with a three-point centring


• Low contact resistance


• Screw locking by means of spring-loaded elements in the clamping area


• Mounts to NS 35/15 & NS 32 DIN rails


• 2 Connections with an insulating material of PA


• Approved for installation on potentially explosive areas. (ATEX rating)

Complete Line:

The complete line is Phoenix's solution to a full range of products that go into control cabinets. The range features and covers all aspects ranging from procurement, installation and operation all the way to the likes of measuring, automation switch and controlling. Complete line ensures total simplicity and intuitive operation so that it saves times and provides so much more compatibility than combining.

The UKH50 terminal blocks are apart of phoenix complete line range.

Approvals

UL, CUL, CSA

Phoenix Contact CLIPLINE UT Range

6483653 Datasheet

3009118 Application Note
