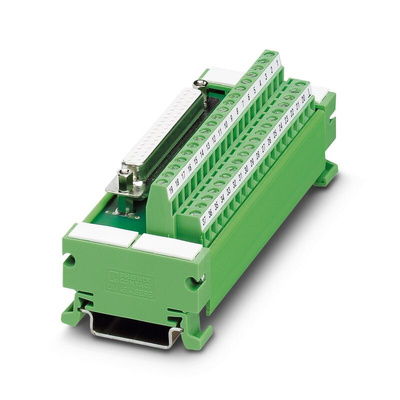

2962751, Phoenix Contact UM Series 37-Contact Female Interface Module, D-sub Connector, DIN Rail Mount, 2.5A, Модуль

UM 45-D37SUB/S DIN rail interface module

Phoenix Contact brings you a range of DIN rail wiring modules that have been engineered to work with Phoenix's brilliant range of VARIOFACE modules. These connectors are D-sub connectors and feature screw-connection terminal blocks and can accept cables from 26AWG down to 16AWG.

The D-Sub connector is housed in a green, high-density polyamide and the foot of the unit will allow you to connect the module to DIN rails that are NS 35/7.5 in size. They're typically the most commonly used DIN rails in cabinets, so the foot will provide you maximum compatibility

Features and benefits:

• Provides an easy way to incorporate a D-sub connector onto your DIN rail


• Compatible with the huge VARIOFACE range from Phoenix


• Plug housing is secured with 2 4-40UNC retaining screws


• Side components equipped with identification labels


• Metallic connector shell is directly linked to a connection terminal, providing earthing

Phoenix Contact Interface Module, D-sub Connector, Female - 2962751

This interface module by Phoenix Contact is designed to provide reliable and efficient connectivity solutions for various industries such as automation, electronics, electrical, and mechanical. With a D sub connector, 37 contacts, a current rating of 2.5A, and a test proof voltage of 800V, this module offers high performance and durability for your applications.

Features & Benefits

• D sub connector for secure and stable connections
• 37 contacts for versatile connectivity options
• 2.5A current rating for efficient power transmission
• 800V test proof voltage for reliable performance
• Compact design with dimensions of 121 x 42 x 45 mm for easy installation
• Female connector for convenient interface options
• DIN rail mount for flexible mounting solutions
• Wide operating temperature range from 20°C to +50°C for versatile applications
• Voltage rating of 25V AC and 60V dc for compatibility with different systems
• Wire size compatibility from 26 to 16 AWG for flexible installation

Applications

• Ideal for use in automation systems for reliable connectivity
• Suitable for electronic devices requiring secure connections
• Perfect for electrical panels and control systems
• Designed for mechanical applications where reliable connectivity is essential

Can it operate in extreme temperatures?

Yes, this interface module can operate in temperatures ranging from -20°C to +50°C.

Will it provide a stable connection for my automation system?

Yes, the D-sub connector and 37 contacts ensure secure connectivity.

Is it easy to install on a DIN rail?

Yes, the DIN rail mount feature makes installation quick and convenient.

Can it handle various wire sizes?

Yes, this module is compatible with wire sizes from 26 to 16 AWG.

Is it suitable for high-power applications?

Yes, with a 2.5A current rating and 800V test proof voltage, it is ideal for high-power applications.

Approvals

UL, CUL
