2962816, Phoenix Contact, 50 Pole D-sub Connector, Male Interface Module, DIN Rail Mount, Модуль

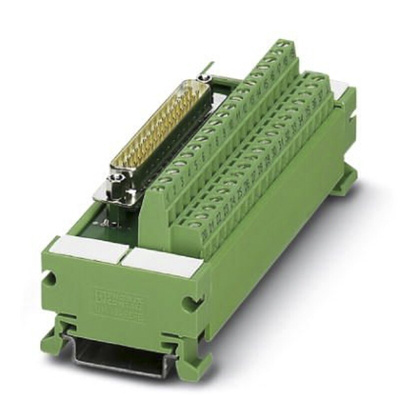

UM 45-D37SUB/S DIN rail interface module

Phoenix Contact brings you a range of DIN rail wiring modules that have been engineered to work with Phoenix's brilliant range of VARIOFACE modules. These connectors are D-sub connectors and feature screw-connection terminal blocks and can accept cables from 26AWG down to 16AWG.

The D-Sub connector is housed in a green, high-density polyamide and the foot of the unit will allow you to connect the module to DIN rails that are NS 35/7.5 in size. They're typically the most commonly used DIN rails in cabinets, so the foot will provide you maximum compatibility

Features and benefits:

• Provides an easy way to incorporate a D-sub connector onto your DIN rail


• Compatible with the huge VARIOFACE range from Phoenix


• Plug housing is secured with 2 4-40UNC retaining screws


• Side components equipped with identification labels


• Metallic connector shell is directly linked to a connection terminal, providing earthing

Approvals

UL, CUL

Varioface Module
