1788198, Phoenix Contact COMBICON UMSTBVK Series Green DIN Rail Terminal Block, Screw Termination

UMSTBVK 2.5 DIN Rail Connector – Phoenix Contact

The UMSTBVK DIN rail connectors from Phoenix Contact are designed to be used with Phoenix's MSTB 2.5 range of terminal blocks. This connector will allow you to directly mount terminal blocks onto NS 32 or NS 35 DIN rails thanks to its universal footing. The terminal block itself is a screw connection method terminal block to give you maximum connection strength over time, 5.08mm pitch for total versatility and is rated at 12A with a nominal voltage of 320V.

UMSTBVK series are made from a durable green polyamide just like the MSTB series and thanks to the MSTB series being so popular, this DIN rail connector can be used world-wide thanks to its well-known connection technology.

Features and benefits:

• Strong screw connection method with tension sleeves


• Footing can attach to NS 32 and NS 35 DIN rails


• Green in colour to match the MSTB range


• Cross section of 2.5mm²

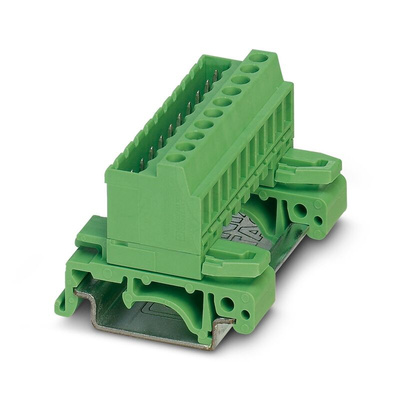

Phoenix Contact COMBICON UMSTBVK Series DIN Rail Terminal Block, Nylon, Top Hat - 1788198

This Phoenix Contact DIN rail terminal block is a versatile solution for various industries such as automation, electronics, electrical, and mechanical. With a 10 way configuration and a current rating of 12A, this terminal block offers reliable connectivity with a screw connection and a pitch of 5.08mm. The terminal block is designed to withstand voltages up to 320V, making it suitable for a wide range of applications.

Features & Benefits

• Versatile 10 way terminal block for easy cable management
• 12A current rating ensures efficient power distribution
• Screw connection with tension sleeve for secure connections
• 5.08mm pitch allows for precise wiring arrangements
• Voltage rating of 320V for safe operation in various environments

Applications

• Ideal for use in control panels for automation systems
• Suitable for electrical wiring in industrial machinery
• Perfect for connecting sensors and actuators in electronic circuits
• Used for power distribution in electrical cabinets

Can it handle high currents?

The DIN rail terminal block is rated for 12A, making it suitable for a wide range of applications requiring higher current loads.

Is it easy to install?

With a screw connection and a cable mount design, the terminal block is easy to install and provides a secure connection for your wiring needs.

Will it fit standard DIN rails?

Yes, the terminal block is designed to be mounted on both NS 32 or NS 35 DIN rails, ensuring compatibility with standard setups.

Approvals

UL, CUL, CSA
