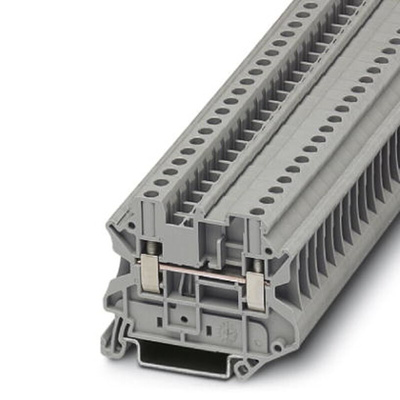

3046184, Phoenix Contact UT 4-MTD RD Series Grey Feed Through Terminal Block, 4mm², Single-Level, Screw Termination, ATEX, IECEx

Phoenix Contact Feed-Through Terminal Block, ATEX Certified, 2 Connections - UT 4-MTD - 3046184

Want to link two wires together in your electrical setup? Pass them through this feed-through terminal block from Phoenix Contact and the job's done. The unit's compatible with wires ranging in size from 26 to 10AWG, so it's a flexible solution. An open side panel lets you access the terminals in a jiffy, so there's no need to remove the unit for maintenance or inspection.
This terminal block comes in PA housing that provides insulation against electrical hazards. A rated surge voltage of 8kV means it doesn't back down in the face of voltage spikes, so your equipment is in safe hands. Thanks to a wide operating temperature range between -60°C and +105°C, the device doesn't break a sweat in demanding industrial environments. Mount it in a snap by simply clipping it onto a DIN rail.

• Flammability rating of UL 94-V0 indicates that burning stops in 10 seconds or less, for enhanced fire safety
• Complies with DIN EN 50274 (VDE 0660-514):2002-11 standards for protection against electric shock
• ATEX certification means it's a safe bet for use in potentially explosive environments

Phoenix Contact CLIPLINE UT Range

Feed-through terminal block

Instruction Sheet - 3046184

Line Drawing - 3046184
