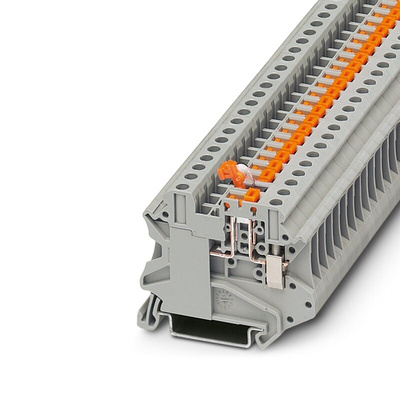

3046171, Phoenix Contact UT 4-MT-P/P Series Grey Knife Disconnect Terminal Block, 0.14 → 6mm², Single-Level, Screw

Disconnect terminal UT 4-MT/ UT 4-TG

The knife disconnect terminal MT is characterised by a compact design and high current capacity
Basic TG terminal is for isolating plugs, assembly element plugs and contactor plugs
Fire protection rating in accordance with UL 94 V0
Version P/P with test socket screws

Standards

IEC 60947-7-1

Approvals

UL, CSA

Phoenix Contact Knife Disconnect Terminal Block, 20A Current Rating, 26 to 10AWG Wire Size - UT 4-MT-P/P - 3046171

Need a reliable method of opening a control system circuit without getting your wires in a tangle? Try this knife disconnect terminal block from Phoenix Contact. It's particularly useful in automation management applications where specific circuits need to be disconnected frequently. The lever-type knives can be operated with a basic screwdriver, so it's a cinch to make changes without manually disconnecting the internal wires.
This unit accommodates conductor cross-sections from 0.14 to 6mm², so it's widely compatible with commonly used conductors. The knives attach to end positions for visibility, which protects against the risk of accidental actuation.
Thanks to handy screw termination, it's simple to integrate this component into an existing circuit. This block offers versatile assembly options for use with a disconnect element, fuse plug or component connector.

Features & Benefits

• Maximum voltage of 500V means it can handle high power loads for installed circuits
• Disconnect lever is latched in the end positions for enhanced safety
• Dimensions of 57.8 (L) x 6.2 (W) x 55mm (H) for easy installation in tight spaces

Phoenix Contact CLIPLINE UT Range

Feed-through terminal block
