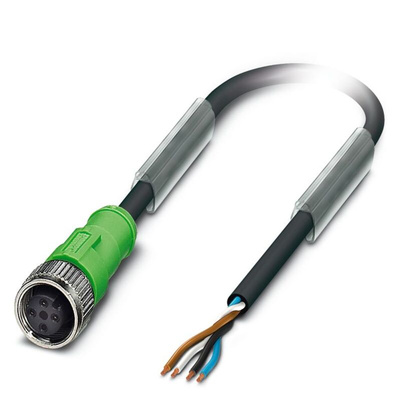

1668111, Phoenix Contact Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 3m, Кабельная сборка

Sensor / Actuator Cable, M12 Socket with Open Cable End

Sensor / Actuator cable — various cable lengths
Flexible adjustment with open cable end
Mount using the plug from the SACC range

Phoenix Contact Straight M12 to Unterminated Cable Assembly, 3 m - SAC-4P- 3.0-PUR/M12FS - 1668111

Quickly transmit large volumes of data and power with this copper-wired cable from Phoenix Contact. It provides a high-quality connection between your industrial control cabinet and a field sensor or switch. There's a 4-position M12 straight connection at one end and you can wire the other unterminated end to the plug of your choice.
A polyurethane (PUR) jacket protects the cable cores and provides resistance to abrasion and heat. This PUR material provides a rigid housing for the inner wiring. The cable sheath is unaffected by oil, acids and solvents, so it performs well in challenging industrial environments.
Because the copper wires are heat resistant, the risk of fire is reduced if the cable is overloaded. And as PUR is a self-extinguishing thermoplastic, this cable is safe to use in higher temperatures. It's also halogen-free so it won't release any toxic or corrosive gases.

• American wire gauge of 22
• M12 female connector A
• Unterminated connector B
• Cross-sectional area of 0.34 mm²
• Length of 3 m
• 4 cores
• Black sheath colour
• Unshielded

3 Metre Sensor-Actuator Cable 4P
